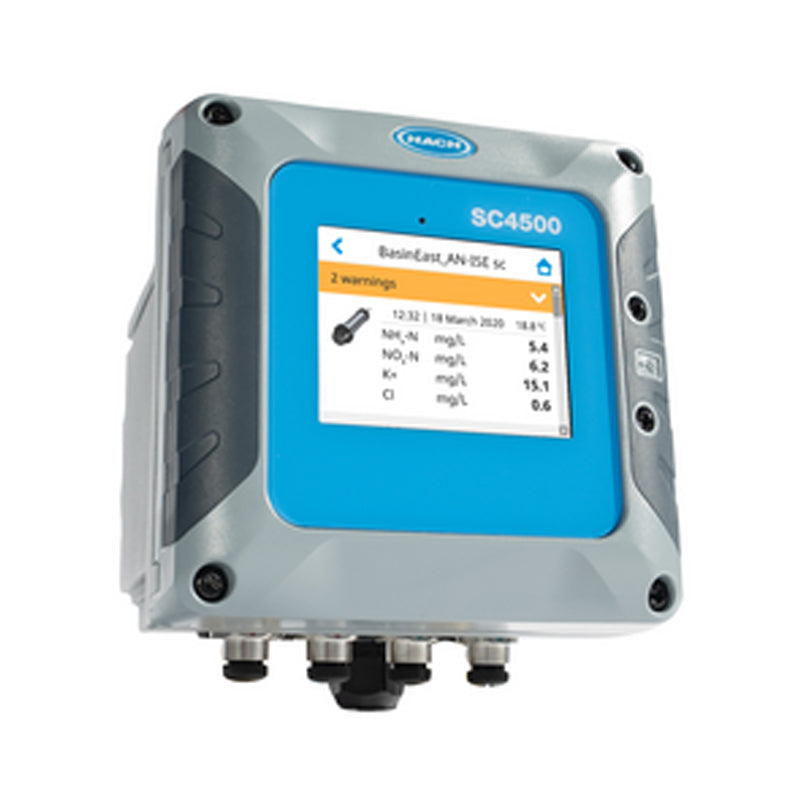

HACH SC4500 Controller, Prognosys, 5x mA Output, 2 digital Sensors, 24 VDC, without plug PN.LXV525.99Z11551&LXV525.99Z11554
HACH SC4500 Controller, Prognosys, 5x mA Output, 2 digital Sensors, 24 VDC, without plug PN.LXV525.99Z11551&LXV525.99Z11554
无法加载取货服务可用情况
* Please consult before ordering
Ready for Now. Ready for the Future.
Digital controller for up to two compatible instruments.
Technologies are advancing rapidly, providing new levels of convenience, accuracy, and efficiency. Which is exactly why the SC4500 Controller from HachⓇ is designed to integrate easily into your current system while allowing you to upgrade as your capabilities advance, without having to replace inventory. With a wide range of analog and digital connectivity options and the availability of intelligent instrument and data management features, the SC4500 unlocks the future, today.
Benefits
Easy Adoption
The familiar experience of a modern touchscreen, the ability to use your current Hach sensors, and the same footprint as the SC200, make installation and integration of the SC4500 Controller seamless.
No Time for Downtime
The SC4500's built-in predictive diagnostic software ensures measurement confidence and reduces the risk of unexpected equipment downtime by enabling proactive maintenance planning via MSM, including step-by-step instructions.
The Connectivity Options You Need
The Controller is Smart Monitoring enabled and provides local communication to SCADA or a PLC. From analog and advanced digital protocols to Wi-Fi, cellular or LAN, the SC4500 gives you the flexibility to adapt in a rapidly changing world.
Specifications
Technical Attributes
| Altitude | 3000 m (9842 ft) maximum |
| Analog Output Functional Mode | Linear, PID |
| Communication (optional) | Analog: Five 0-20 mA or 4-20 mA analog outputs on each analog output module Up to two analog Input modules (0-20 mA or 4-20 mA). Each input module replaces a digital sensor input. Digital: Profibus DPV1 module Modbus TCP Profinet IO module Ethernet IP module |
| Compatible Instruments | Compatible Sensors and Analyzers / Software Version (Release Year) Amtax sc / V2.30 (2018) or higher A-ISE sc / V1.02 or higher AN-ISE sc / V1.08 (2013) or higher N-ISE sc / V1.02 or higher Nitratax clear sc, Nitratax eco sc, Nitratax plus sc / V3.13 (2013) or higher NT3100sc/NT3200sc Phosphax sc / V2.30 (2018) or higher Phosphax sc LR/MR/HR / V1.01 (2018) or higher TSS sc / V41.73 (2013) or higher Solitax sc / V2.20 (2013) or higher TU5300sc, TU5400sc / V1.34 (2017) or higher SS7 sc (in Bypass) / V1.01 (2006) or higher Ultraturb sc / V3.06 (2017) or higher 1720E / V2.10 (2006) or higher Sonatax sc / V1.15 (2016) or higher CL17sc / V2.7 (2019) or higher CL10sc / V1.14 (2013) or higher 9184sc, 9185sc, 9187sc* / V2.03 (2013) or higher Uvas plus sc / V3.01 (2017) or higher LDO 2 sc* / V1.22 (2013) or higher 3798sc* / V2.03 (2013) or higher 3700sc + Inductive Conductive Digital Gateway 6120800 / V3.00 (2017) or higher 3422sc, Analog 3400 + Contacting Cond. Digital Gateway 6120700 / V3.00 or higher pHD sc*, pHD-S sc / V3.10 (2016) or higher 1200-S sc* / V2.04 (2013) or higher pHD analog + Digital Gateway 6120500 / V3.00 (2017) or higher RC and PC analog sensor + Digital Gateway for conventional analog pH and ORP sensors 6120600 / V3.00 (2017) or higher 8362sc* / V3.00 (2017) or higher *Hardware Version1 of instrument is not supported |
| Compatible Network Technologies | GSM 3G/4G (e.g. AT&T, T-Mobile, Rogers, Vodafone etc.) CDMA (e.g. Verizon) |
| Compliance Certifications | CE. ETL certified to UL and CSA safety standards (with all sensor types), FCC, ISED, KC, RCM, EAC, UKCA, SABS, C م (Morocco) |
| Conduit Openings | ½" NPT conduit |
| Description | Microprocessor-controlled and menu-driven controller that operates the sensor |
| Dimensions | ½ DIN - 144 x 144 x 192 mm (5.7 x 5.7 x 7.6 in.) |
| Display | 3.5-inch TFT colour display with capacitive touchpad |
| Enclosure Rating | UL50E type 4X, IEC/EN 60529–IP 66, NEMA 250 type 4X Metal enclosure with a corrosion-resistant finish |
| Indoor/Outdoor | Outdoor installation in direct sunlight or UV radiation requires UV protection screen and/or sunroof |
| Installation Category | Category II |
| Material Enclosures | Polycarbonate, aluminum (powder coated), stainless steel |
| Measurements | Two device digital SC connectors |
| Mounting | Wall, Pole, or Panel Mounting |
| Network Connectivity | LAN: Two Ethernet connectors (10/100 Mbps) Cellular: External 4G Wi-Fi |
| Operating Temperature Range | -20 to 60 °C (-4 to 140 °F) (8 W (AC)/9 W (DC) sensor load) -20 to 45 °C (-4 to 113 °F) (28 W (AC)/20 W (DC) sensor load) Linear derating between 45 and 60 °C (-1.33 W/°C) |
| Outputs | 5x mA Output |
| Pollution Degree | 4 |
| Power Requirements (Voltage) | 18-28 VDC; 2.5 A |
| Power Supply | Without plug 24 VDC |
| Protection Class | I, connected to protective earth |
| Relays | Two relays (SPDT); Wire gauge: 0.75 to 1.5 mm² (18 to 16 AWG) AC controller Maximum switching voltage: 100 - 240 VAC Maximum switching current: 5 A Resistive/1 A Pilot Duty Maximum switching power: 1200 VA Resistive/360 VA Pilot Duty DC controller Maximum switching voltage: 30 VAC or 42 VDC Maximum switching current: 4 A Resistive/1 A Pilot Duty Maximum switching power: 125 W Resistive/28 W Pilot Duty |
| Sensor Input #1 | Digital |
| Sensor Input #2 | Digital |
| Software available | Non-Claros + Embedded Prognosys |
| Storage Conditions | -20 - 70 °C (-4 - 158 °F), 0 - 95% relative humidity, non-condensing |
| USB Port | Used for data download and software upload. The controller records approximately 20,000 data points for each connected sensor. |
| Warranty | 12 months |
| Weight | 3.7 lb (controller only, w/o modules) |
| What's included? | SC4500 Controller, Claros-enabled, with EU plug; includes mounting hardware |
