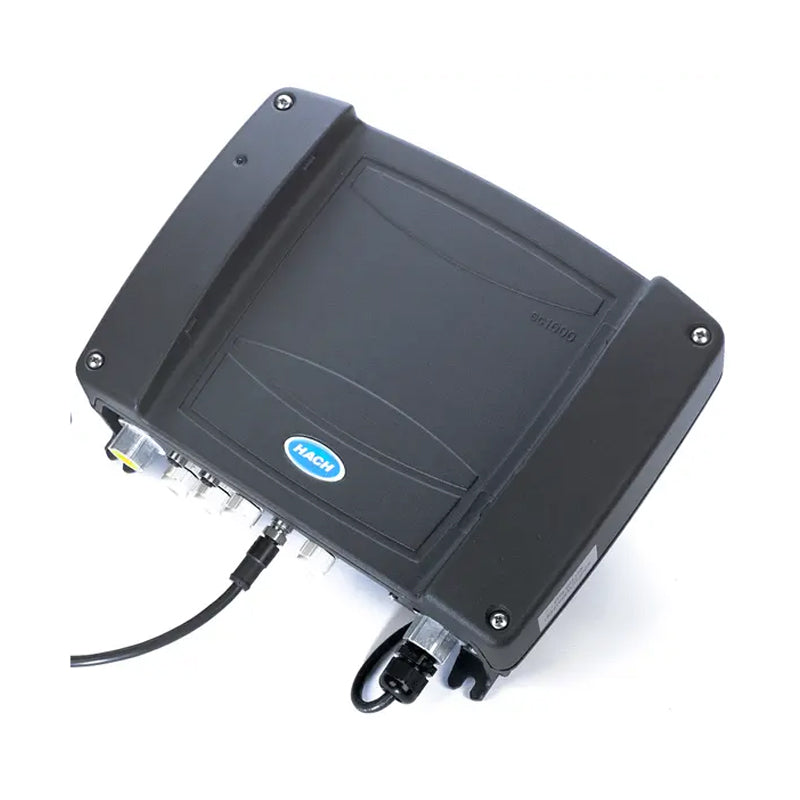

HACH SC1000 Probe Module, 8 Sensor Connectors, 100-240 VAC with Conduits PN.LXV400.99.10092
HACH SC1000 Probe Module, 8 Sensor Connectors, 100-240 VAC with Conduits PN.LXV400.99.10092
无法加载取货服务可用情况
* Please consult before ordering
The only controller needed for all of your water quality measurements.

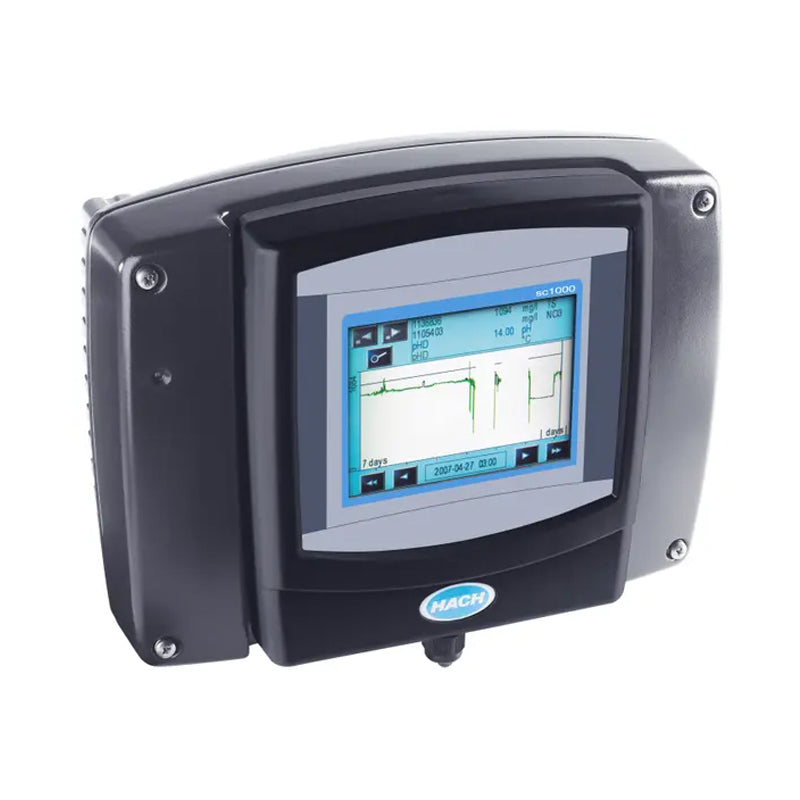

The Hach SC1000 Multi-parameter Universal Controller is a state-of-the-art modular transmitter system. The SC1000 consists of a Display Module and at least one Probe Module. Probe Modules for the SC1000 can be networked together to accommodate up to 32 digital sensors or analyzers. The SC1000 Display Module is intuitive, with an easy to use interface and large color touch-screen display that can be used for any number of parameters. One Display Module controls one or more Probe Modules connected by a digital network. The Display Module is fully portable, and can be disconnected and moved anywhere within the network. The Hach SC1000 Display Module is available with GSM/GPRS, Ethernet, and TCP/IP capability.
Benefits
More Confidence in Your Instrument’s Performance
Available exclusively on Hach instruments, Prognosys predictive diagnostics uses innovative diagnostic software to read multiple inputs from your instrument and alert you to the instrument's overall performance and upcoming maintenance. An easy-to-read dashboard provides instant indication of measurement reliability and service requirements. Process control has never been easier.
Plug and Play Operation
There’s no complicated wiring or set up procedures with the SC1000 controller. Plug any Hach digital sensor into a Probe Module and it’s ready for use. No special ordering or software configuration is needed.
Communication Options to Fit Any Application Need
The Hach SC1000 controller features state-of-the art Modbus TCP/IP communications protocol for seamless integration into a network of devices that support TCP/IP sockets. Use a standard Ethernet cable or connect wirelessly using GSM/GPRS to communicate with your SCADA, PLC or other network. Available with analog 4-20mA, Modbus 485, Profibus DP, or HART digital communication options.
Expandable and Upgradable
The SC1000 controller can adapt to your needs. Add or change probes without having to change the controller. Plus, with a single Display Module, additional Probe Modules and associated sensors can be added or removed depending on operational needs. Fully upgradable software ensures that this system will not be obsolete. Hach service plans are available.
Specifications
Technical Attributes
| Alarm | Low alarm point, low alarm point deadband, high alarm point, high alarm point deadband, off delay, and on delay |
| Analog Inputs | No Input Module |
| Analog Output | No Output Module |
| Analog Output Functional Mode | PID, high/low phasing, setpoint, deadband, overfeed timer, off delay, on delay |
| Certifications | European Certifications: CE per 73/23/EEC and 89/336/EEC TUV-GS to EN 61010-1 EN 61326 Amd's 1 & 2 |
| Communication | Modbus® (RS485): Advanced communications/networking with PLC or SCADA system directly from analyzer Profibus® DP/V1 (certified) GSM/GPRS Quad-band cellular module (FCC and IC approved, EU and US only) Ethernet service port, RJ45, 10 MB/s |
| Communication Capabilities | None |
| Conduit for Relay Connection | Yes |
| Dimensions (H x W x D) | 150 mm x 315 mm x 250 mm |
| Display | ¼ inch VGA graphical backlit TFT color Glas/Glas-Touch screen, high resistance 320 x 240 pixels |
| Display Viewing Area | 11.4 x 8.6 cm (4.5 x 3.4 in) |
| Enclosure Rating | IP65 |
| Inputs | Up to 12 analogue 0-20 mA, maximum impedance 500 Ohms per probe module. Additional inputs are available with additional probe modules. |
| Material Enclosures | ABS (display module) and metal (probe module) enclosure with corrosion resistant finish |
| Mounting | Surface, panel, and pipe (horizontal and vertical) with optional sun shield |
| Operating Temperature Range | -20 - 55 °C / 0 - 95% relative humidity, non-condensing |
| Output | Up to 12 analog 0/4-20 mA, maximum impedance 500 Ohms per probe module. Additional analog outputs with additional probe modules. Optional digital communcations via Modbus® (RS485) and Profibus® DP/V1. |
| Power Options | 100-240V, no power cord, with conduit |
| Prognosys | No |
| Relays | No Relay |
| RTC Module | No |
| Sensors | 8 |
| Storage Conditions | -20 to 70 °C (-4 to 158 °F), 0 to 95% relative humidity, non-condensing |
| Warranty | 12 months |
| Weight | Approximately 6.5 kg (depending on configuration) |
| What's included? | sc1000 Probe Module with installed cards (as requested), Basic User Manual |
