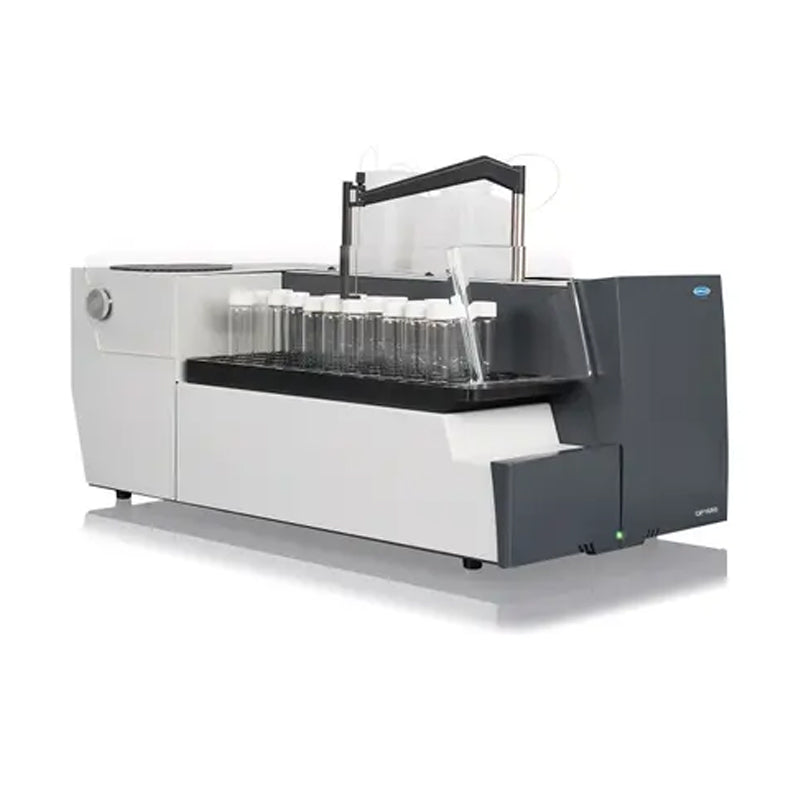

HACH QP1680 High-Temperature TOC/TNb Laboratory Analyzer, with auto sampler, 96 positions PN.LPV448.99.01501
HACH QP1680 High-Temperature TOC/TNb Laboratory Analyzer, with auto sampler, 96 positions PN.LPV448.99.01501
无法加载取货服务可用情况
The QP1680 Analyzer measures Total Organic Carbon (TOC) and Total Nitrogen (TNb) in one sample.
The QP1680 is available as a combined TOC and TNb analyzer or for the individual parameters TOC or TNb.
The most important features include:
• Direct sample injection eliminates sample contact with valves and the built-in injection syringe, which minimizes the risk of sample carry-over.
• Large diameter sample aspiration tubing can handle particles up to 800 µm, expanding possible applications and reducing clogging.
• Integrated stirrer for each sample position homogenizes particle-containing samples before injection.

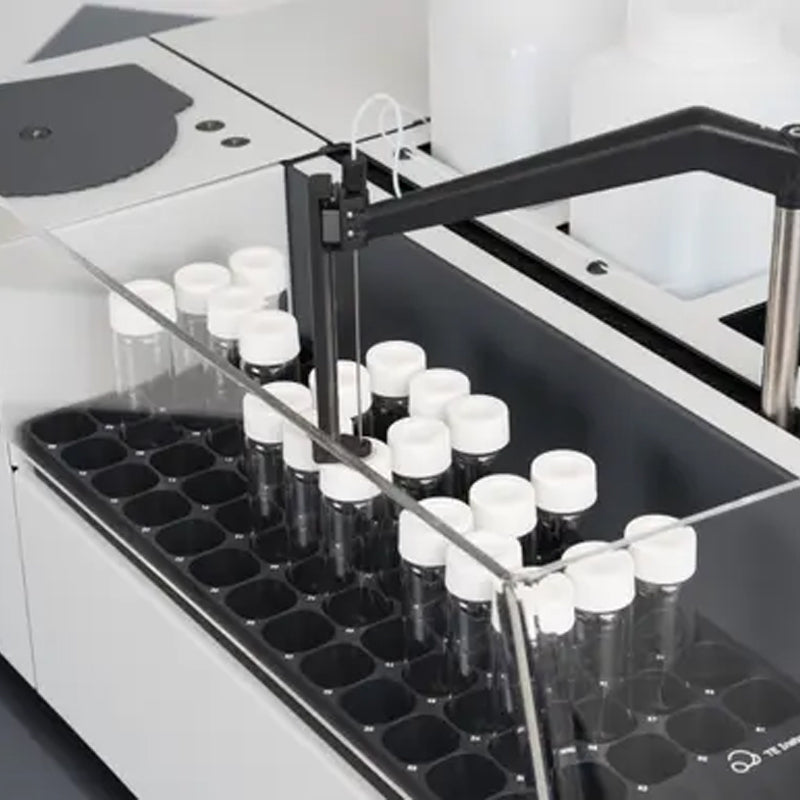

• Small footprint with integrated 65-position auto-sampler requires less space in the laboratory (an auto-sampler with 96 positions is also available as an alternative).
• Simple operation, data analysis and system diagnosis thanks to an intuitive software package.
Specifications
Technical Attributes
| Ambient Temperature | -20 - 60 °C (-4 - 140 °F) |
| Analysis time | Approx. 4 minutes |
| Dimensions | 440 x 380 x 700 mm / 17.3 x 15 x 27.6 in. (H x W x D) |
| Gas consumption | 200 mL/min* *Sample preparation for NPOC determination requires additional 300-350 mL/min. |
| Gas specifications | Oxygen or synthetic air: minimum 99.998% (4.8) at 3 - 10 bar |
| Lower Limit of Detection (LOD) | TC, TIC, NPOC: 50 µg/L TNb: 20 µg/L |
| Measurement Method | TOC: NDIR (non-dispersive Infrared Detection) TN: Chemiluminescence |
| Model | QP1680-TOC/TNb |
| Norms and Standards | TOC / NPOC: ASTM D7573, EN 1484, EPA 415.1, EPA 9060A, ISO 8245, SM 5310B, NEN-ISO 20236 TNb: ASTM D8083, EN 12260, ISO 11905-2, NEN-ISO 20236 |
| Number of sample positions | 96 |
| Operating Conditions | 20 - 30 °C (68 - 86 °F); 20 - 80% relative humidity (non-condensing) |
| Oxidation Method | Catalytic combustion at 720 °C |
| Parameter | TOC, TNb |
| Pollution Degree | 2 |
| Power | Analyzer: 750 W max. PC: 90 W max. Monitor: 100 W max. |
| Power Supply | Analyzer: 100 - 240 VAC, 50/60 Hz, 16 A, with protective grounding PC: 100 - 240 VAC, 50/60 Hz, 1.6 A, with protective grounding Monitor: 100 - 240 VAC, 50/60 Hz, 1.6 A, with protective grounding |
| Range | TC, TIC, NPOC, TNb: 0 - 30000 mg/L |
| Repeatability | Up to 10 mg/L TC, TIC, NPOC, TN: < 5% > 10 mg/L TC, TIC, NPOC, TN: < 2% |
| Sample Volume | 10 - 1000 µL |
| Temperature | Furnace temperature max. 1050 °C (1922 °F) (depending on configuration) |
| Warranty | 12 months |
| Weight | Approx. 32 kg (70.5 lbs) |
| What's included? | TOC/TNb Instrument Sample tray with 96 positions for 24 mL vials Glass sample vials 24 mL (100 pcs) USB 2.0 cable A-B Set of tubing PTFE blue-stripe 1/8" OD length 2 m including nut & ferrule Reagent container with screwcap for UPW, Acid and Waste Power cord USB storage device with software, test results and Full User Manual Printed User Manual |
