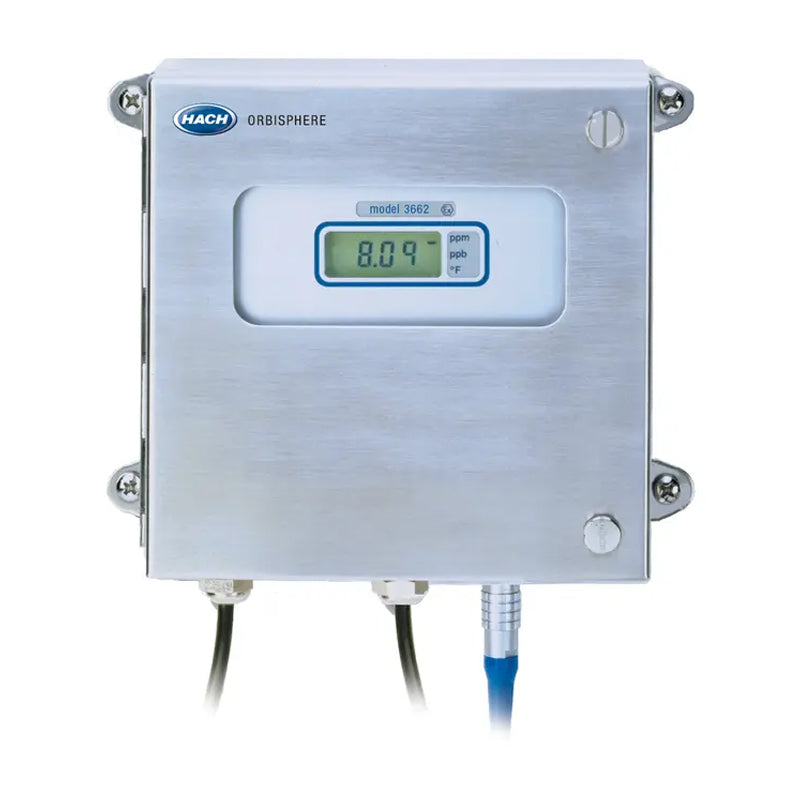

HACH Orbisphere 3662EX ATEX Controller for Hydrogen (H₂) measurement, wall mount, 6.5 - 13.5 VDC, units : ppm/ppb PN.3662EX/200
HACH Orbisphere 3662EX ATEX Controller for Hydrogen (H₂) measurement, wall mount, 6.5 - 13.5 VDC, units : ppm/ppb PN.3662EX/200
无法加载取货服务可用情况
* Please consult before ordering
Intrinsically Safe Analyzer
The 366xEx family of instruments measures oxygen (O₂), hydrogen (H₂), and ozone (O₃) in areas where hazardous and flammable conditions are possible. When coupled with a choice of membrane covered, electrochemical sensors, the 366xEx is suitable for sampling dissolved concentrations from trace ppb to supersaturation, and gaseous con-centrations from ppb to percent (%) levels. These sensors can be constructed from a variety of chemically resistant materials and use an assortment of membranes with permeability and chemical resistance to optimize long-term measurement performance.
Benefits
ATEX certified
The Orbipshere 3662EX supports European Community ATEX directive and standards with marking: Ex II 1G, Ex ia IIC T4 Ga (corresponds to NFPA Class l Div l Group A,B) and IEC Certification IECEx LCI 09.0026X
Consistent and accurate measurements
Used to measure in aqueous or non-aqueous samples such as organics, olefins, fuels, monomers, aromatics, specialty chemicals, water, and other liquids and gases.
Easy installation
Easy installation and sampling with in-line and sidestream accessories.
Easy calibration
Flexible and verifiable calibration in air, liquid, or gas standard with negligible drift.
Specifications
Technical Attributes
| Communication | RS485 |
| Electrode Compatibility | 312xxE-xx |
| Mounting | Wall mount |
| Parameter | Hydrogen, ppm/ppb |
| Power Requirements (Voltage) | 6.5-13.5 VDC |
| Rating connector | ATEX |
| Warranty | 12 months |
