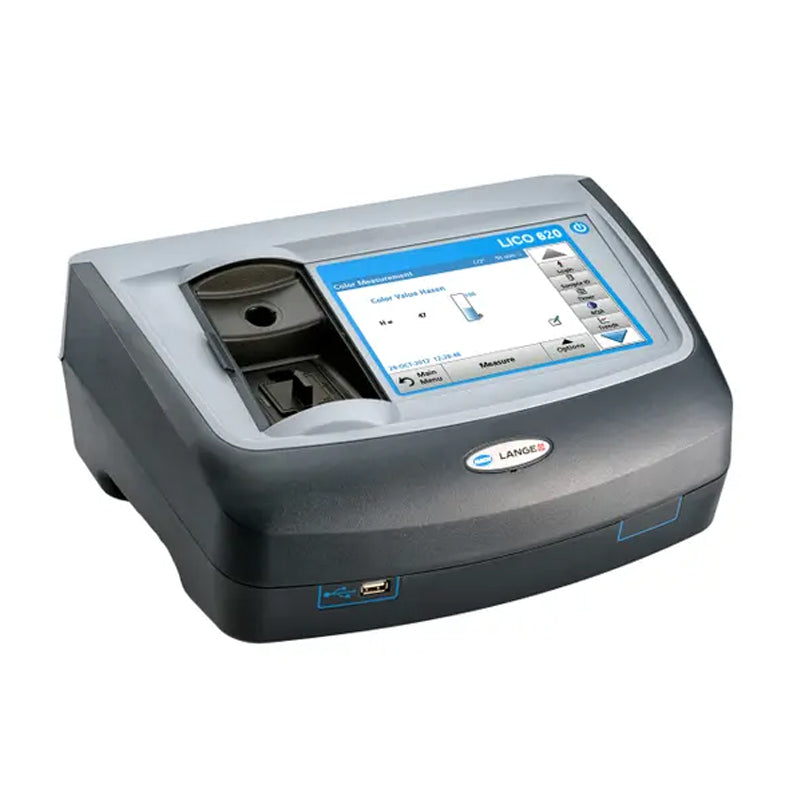

HACH Lico 620 Colorimeter for up to five color scales PN.LMV187.99.20001

HACH Lico 620 Colorimeter for up to five color scales PN.LMV187.99.20001

¥85,835.20 CNY
¥107,294.00 CNY ¥85,835.20 CNY
促销 售罄

Colorimeter for color measurements of clear, transparent liquids with reference beam technology. Measures up to five ISO/ASTM color scales.

Benefits

Hazen/APHA/PtCo-color



Gardner-color



Iodine-color



Saybold-color



ASTM D 1500

Specifications



Technical Attributes

Beam Height 10
Color Scales DIN 6162 iodine; ISO 6271 Hazen (Pt/Co, APHA, ASTM D1209, D5386); ISO 4630 Gardner (ASTM D1544, D6045); ASTM D 156 Saybolt; ASTM D 1500 mineral oil
Color Scales 5
Cuvette Compatibility 2 10 mm rectangular sample cell
Cuvette Compatibility 3 50 mm rectangular sample cell
Dimensions (H x W x D) 151 mm x 350 mm x 255 mm
Display TFT WVGA color graphic touch-screen
Display Resolution 480 - 800 pixel
Display Size 17.8 cm (7 in.)
Display Type Color graphic
Interface 2x USB Typ A, 1x USB Typ B, 1x Ethernet
Max. operating humidity 80
Memory 400 color readings
Model Lico 620
Operating Temperature Range 10 - 40 °C
Optical Path Length 10 - 50 mm
Optical System 0° / 180° rectilinear
Photometric Accuracy 0.005 Abs at 0 - 0.5 Abs
Photometric Accuracy 2 1 % at 0.5 - 2.0 Abs
Photometric Linearity < 0.5 % to 2 Abs with neutral glass at 546 nm
Photometric Linearity 2 ≤ 1 % with neutral glass at 546 nm
Power Requirements 110 V - 240 V
Power Requirements (Hz) 50/60 Hz
Power Requirements (Voltage) 100 - 240 VAC
Reproducibility ±0.2 % transmission
Sample Cell Compatibility 11 mm round sample cell
Source Lamp Tungsten halogen lamp
Standard Illuminant C 2°
Standard Observer 2°
Storage Conditions -40 °C - 60 °C
Stray radiant power ratio < 0.1 %T at 340 nm with NaNO2
User Interface Touch-screen, ext. USB keyboard
User Interface Languages English, French, German, Italian, Spanish, Czech, Dutch, Greek, Polish, Slovene, Slovake, Russian, Turkish, Chinese, Japanese, Korean
Warranty 12 months
Wavelength Accuracy ±1.5 nm (wavelength range 340 - 900 nm)
Wavelength Calibration Automatic
Wavelength Range 380 nm - 720 nm used for colorimetric calculations
Wavelength Reproducibility ≤ 0.1
Weight 4.2 kg
What's included? Instrument, power supply, printed basic user manual, CD with full user manual, 10 mm cell adapter, dust cover
