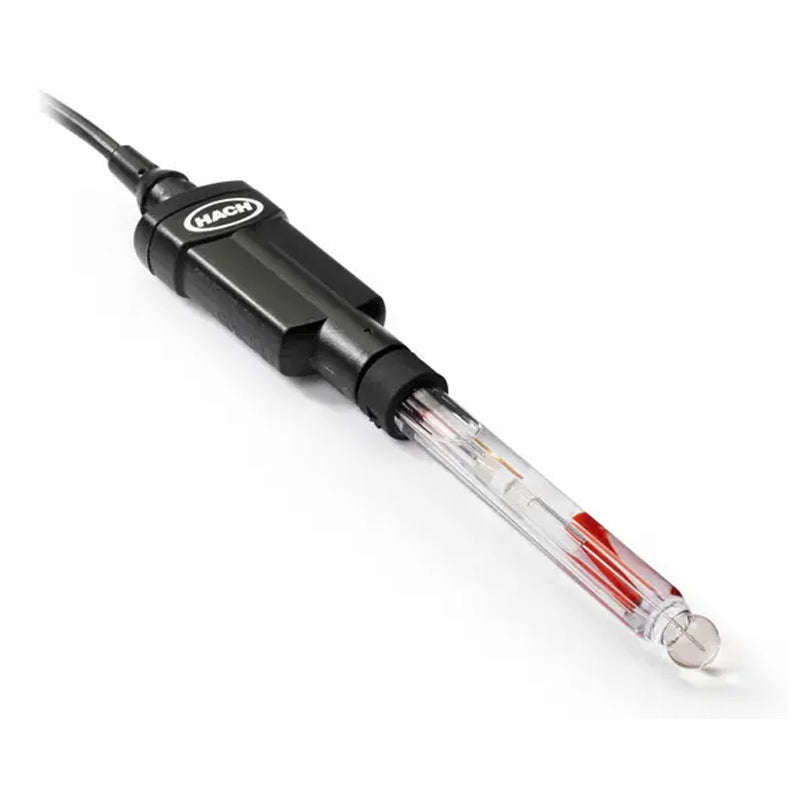

HACH IntelliCAL PHC805 Laboratory General Purpose Refillable Glass pH Electrode, 1 m Cable PN.PHC80501
HACH IntelliCAL PHC805 Laboratory General Purpose Refillable Glass pH Electrode, 1 m Cable PN.PHC80501
无法加载取货服务可用情况
* Please consult before ordering
IntelliCALⓇ PHC805 is a digital combination pH electrode with built-in temperature sensor. The PHC805 is a pH refillable electrode with ceramic porous pin reference junction. This laboratory glass pH electrode is ideal for measuring pH in general purposes laboratory applications for aqueous samples. A 50-mL bottle of KCl 3M Electrode Filling Solution is included with the probe. The PHC805 is not suitable for use with organic solvents, low ionic strength, wastewater, high solids or high alkaline sample types.
Benefits
Refillable glass body electrode delivers exceptional value and long life
Glass body electrode is chemically resistant and easy to clean. Refillable reference typically delivers longer expected life than gel-filled electrodes.
IntelliCAL digital probes provide ultimate traceability in measurement history
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number.
IntelliCAL digital probes alert the user when re-calibration is needed
No guesswork needed to provide the most reliable and accurate results with each measurement.
IntelliCAL digital probes can be moved between meters without the need to re-calibrate or re-enter measurement settings
Ideal for a multi-user environment with multiple HQD series laboratory and portable meters.
Specifications
Technical Attributes
| Accuracy | ±0.02 pH |
| Application | High Performance (0 to 80 °C) |
| Cable Length | 1 m (3.28 ft) |
| Electrode Type | RedRod / Refillable Reference Element |
| Filling Solution | 3 M KCl (#2756559) |
| Junction | Porous Pin Junction |
| Kit? | No |
| Length | 200 mm (7.87 in.) |
| Method Type | Laboratory: RedRod / Refillable Reference Element |
| Parameter | pH |
| Probe Type | Standard |
| Product Kit | Model: PHC805 Accessories Included: None |
| Range | 0 - 14 pH |
| Reference Type | Ag/AgCl |
| Resolution | 0.001/0.01/0.1 |
| Sample depth | 18 mm (0.71 in.) |
| Sensor material | Glass |
| Sensor Type | pH Glass |
| Sodium (Alkalinity) error | <0.3 pH at pH 13 in 0.1 M NaOH |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | 0 - 80 °C (32 - 176 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: pH Minimum Sample Depth (mm): 18 |
| Thermistor | ATC |
| Warranty | 12 months |
| Weight | 0.1 kg |
| What's included? | IntelliCAL PHC805 Laboratory pH electrode with storage soaker bottle, 1 m cable, 5-mL bottle reference electrolyte filling solution KCl 3M solution), Test certificate, and Basic User Manual. |
