HACH
HACH IntelliCAL PHC705 Laboratory High Alkalinity Range RedRod Refillable Glass pH Electrode, 1 m Cable PN.PHC705A01
HACH IntelliCAL PHC705 Laboratory High Alkalinity Range RedRod Refillable Glass pH Electrode, 1 m Cable PN.PHC705A01
无法加载取货服务可用情况
* Please consult before ordering
High performance Red Rod technology now available for the digital HQD platform

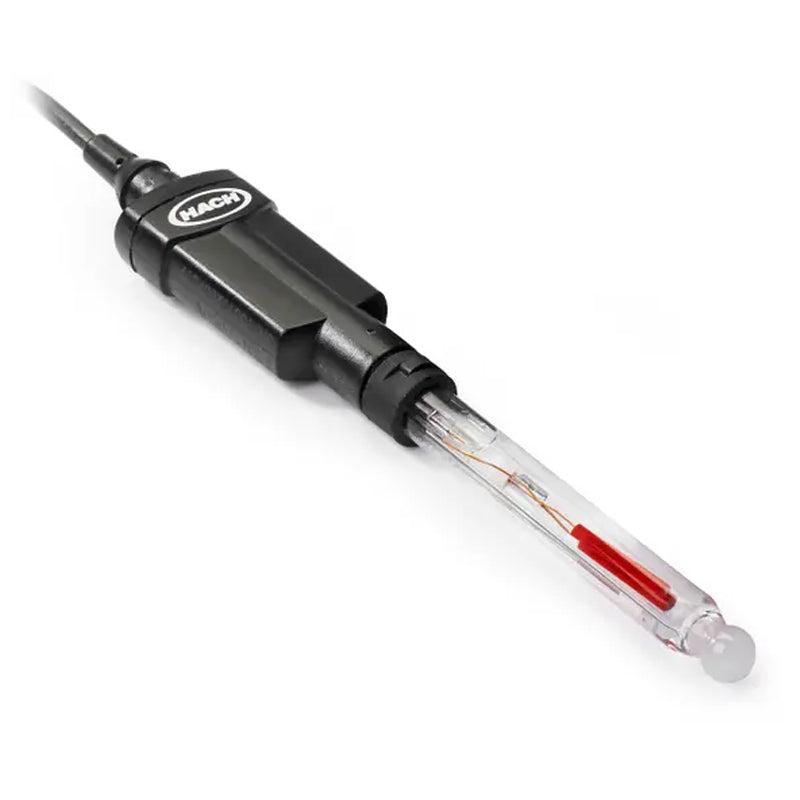

IntelliCALⓇ PHC705A is a digital combination pH electrode with built-in temperature sensor. The PHC705A is a pH refillable electrode with ceramic porous pin reference junction embedding the RedRod technology to deliver exceptionally fast, stable, and accurate response times for accurate measurements within a wide temperature range. Thanks to its special pH glass bulb composition this high performance laboratory glass pH electrode is particularly suited for measuring pH in alkaline aqueous samples for pH above 12. A 59-mL bottle of saturated KCl Electrode Filling Solution is included with the probe. The PHC705 is not suitable for use with organic solvents, emulsions or sample types with high solids content.
Benefits
Red Rod technology provides fast, accurate and reproducible measurements
Symmetry between internal and external Red Rod reference elements ensures that the iso pH is the same as the zero pH, providing highly reproducible results and a fast, accurate response, even in samples with fluctuating temperatures. Red Rod technology also provides a stable signal by protecting the reference elements from light interference, and the saturated KCl salt-bridge aids in creating a stable liquid junction potential.
Red Rod reliability when measuring challenging samples over wider temperature ranges
Red Rod encapsulation of reference elements means no silver ions and less risk of clogged junctions. It also enables accurate measurements over a broader temperature range than standard electrodes.
IntelliCAL digital probes can be moved between meters without the need to re-calibrate or re-enter measurement settings
Ideal for a multi-user environment with multiple HQD series laboratory and portable meters.
IntelliCAL digital probes provide ultimate traceability in measurement history
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
Wide temperature range up to 100 °C
Specifications
Technical Attributes
| Accuracy | ±0.01 pH |
| Application | High Performance/High Alkalinity |
| Cable Length | 1 m (3.28 ft) |
| Electrode Type | RedRod / Refillable Reference Element |
| Filling Solution | Saturated KCl (#25118026) |
| Junction | Porous Pin Junction |
| Kit? | No |
| Length | 200 mm (7.87 in.) |
| Method Type | Laboratory: RedRod / Refillable Reference Element |
| Parameter | pH |
| Probe Type | Standard |
| Product Kit | Model: PHC705A Accessories Included: None |
| Range | 0 - 14 pH |
| Reference Type | Red Rod |
| Resolution | 0.001/0.01/0.1 |
| Sample depth | 18 mm (0.71 in.) |
| Sensor material | Glass |
| Sensor Type | pH Glass |
| Sodium (Alkalinity) error | <0.3 pH at pH 14 in 1 M NaOH |
| Special Features | High-alkalinity samples |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | 0 - 100 °C (32 - 212 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: pH Minimum Sample Depth (mm): 18 |
| Thermistor | ATC |
| Warranty | 12 months |
| Weight | 0.1 kg |
| What's included? | IntelliCAL PHC705A Laboratory pH electrode with storage soaker bottle, 1 m cable, 59-mL bottle reference electrolyte filling solution (Saturated KCl solution), Test certificate, and Basic User Manual. |
