HACH
HACH IntelliCAL PHC301 Laboratory General Purposes Refillable pH Electrode, 1 m Cable PN.PHC30101
HACH IntelliCAL PHC301 Laboratory General Purposes Refillable pH Electrode, 1 m Cable PN.PHC30101
无法加载取货服务可用情况
* Please consult before ordering

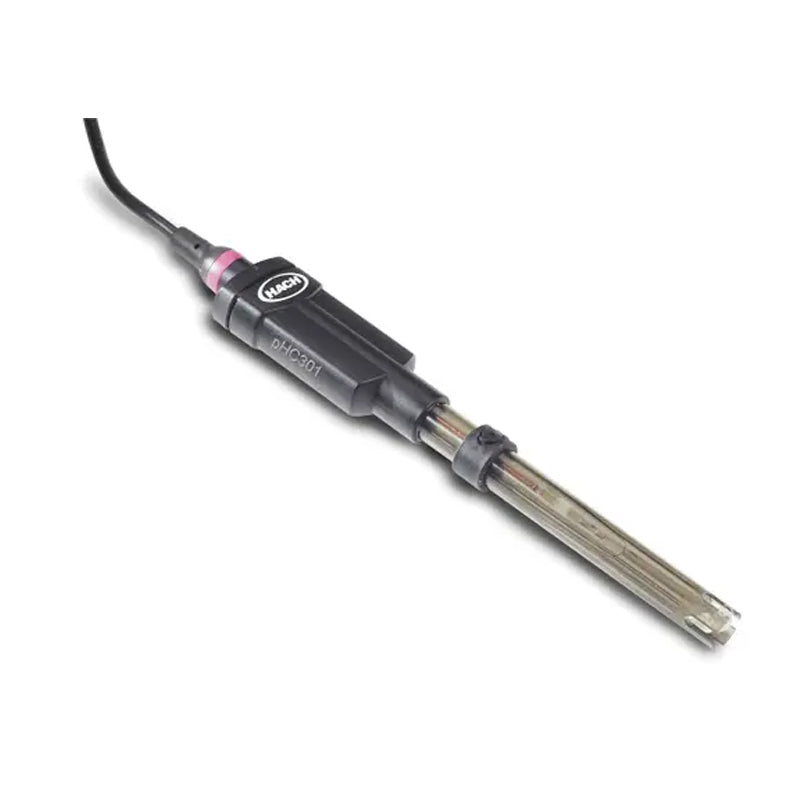

IntelliCALⓇ PHC301 is a digital combination pH electrode with built-in temperature sensor. The PHC301 has a refillable with two ceramic pins reference junction. This laboratory pH electrode is shockproof with its Zeonor plastic body protecting down to the glass bulb sensing element. The electrode is available with a 3 or 1 m cable. The PHC301 refillable combination pH electrode is recommended for wastewater, drinking water and general aquous applications. The PHC301 is not suitable for use with organic solvents. A 28-mL bottle of reference electrolyte filling solution (3 M KCl solution saturated with AgCl) is included with the probe.
Benefits
IntelliCAL digital probes are factory calibrated
Ready to test right out of the box.
IntelliCAL digital probes alert the user when re-calibration is needed
No guesswork needed to provide the most reliable and accurate results with each measurement.
IntelliCAL digital probes provide ultimate traceability in measurement history
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number.
IntelliCAL digital probes can be moved between meters without the need to re-calibrate or re-enter measurement settings
Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters.
Specifications
Technical Attributes
| Accuracy | ±0.02 pH |
| Application | Clean Samples |
| Cable Length | 1 m (3.28 ft) |
| Electrode Type | Refillable Reference Element |
| Filling Solution | 3 M KCl solution saturated with AgCl (#2841700) |
| Junction | Porous Pin Junction |
| Kit? | No |
| Length | 175 mm (6.89 in.) |
| Method Type | Laboratory: Refillable Reference Element |
| Parameter | pH |
| Probe Type | Standard |
| Product Kit | Model: PHC301 Accessories Included: None |
| Range | 0 - 14 pH |
| Reference Type | Ag/AgCl |
| Resolution | 0.001/0.01/0.1 |
| Sample depth | 15 mm (0.59 in.) |
| Sensor material | Zeonor™ |
| Sensor Type | pH Glass |
| Sodium (Alkalinity) error | -0.6 pH at pH 12.6 in 1 M NaOH |
| Special Features | Double junction reference |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | 0 - 50 °C (32 - 122 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: pH Minimum Sample Depth (mm): 15 |
| Thermistor | ATC |
| Warranty | 12 months |
| Weight | 0.1 kg |
| What's included? | IntelliCAL PHC301 Laboratory pH electrode with storage soaker bottle, 1 m cable, 28-mL bottle reference electrolyte filling solution (3 M KCl solution saturated with AgCl), Test certificate, and Basic User Manual. |
