HACH IntelliCAL PHC201 Laboratory General Purposes Gel Filled pH Electrode, 1 m Cable PN.PHC20101
HACH IntelliCAL PHC201 Laboratory General Purposes Gel Filled pH Electrode, 1 m Cable PN.PHC20101
无法加载取货服务可用情况
* Please consult before ordering

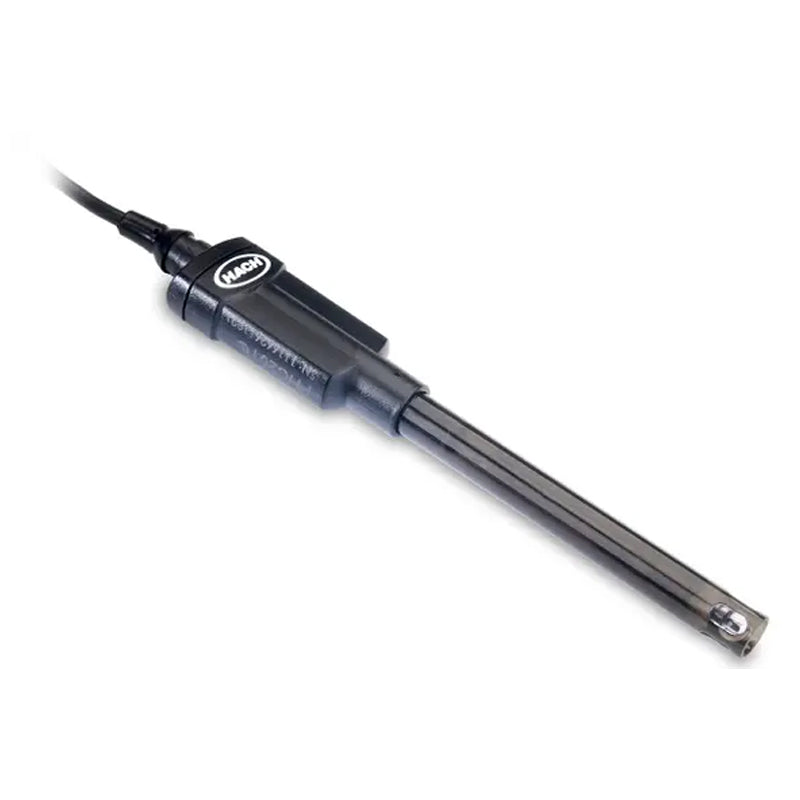

IntelliCALⓇ PHC201 is a digital combination pH electrode with built-in temperature sensor. The PHC201 has a non-refillable semi-liquid gel-filled ceramic pin reference junction. This laboratory pH electrode is shockproof with its epoxy plastic body protecting down to the glass bulb sensing element. The electrode is available with a 3 or 1 m cable. The PHC201 pH electrode is recommended for general aqueous applications. PHC201 is not suitable for use with organic solvents, low ionic strength, wastewater, high solids or high alkaline sample types.
Benefits
IntelliCAL PHC201 provides fast, stable response in water quality applications
Low maintenance gel electrolyte and ceramic pin junction for pH measurement in a variety of sample types.
IntelliCAL digital probes provide ultimate traceability in measurement history
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
IntelliCAL digital probes alert the user when re-calibration is needed
No guesswork needed to provide the most reliable and accurate results with each measurement.
IntelliCAL digital probes can be moved between meters without the need to re-calibrate or re-enter measurement settings
Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters.
Specifications
Technical Attributes
| Accuracy | ±0.02 pH |
| Application | Clean Samples |
| Cable Length | 1 m (3.28 ft) |
| Electrode Type | Non-Refillable Gel Reference Element, semi-liquid gel |
| Junction | Porous Pin Junction |
| Kit? | No |
| Length | 175 mm (6.89 in.) |
| Method Type | Laboratory: Non-Refillable Gel Reference Element, semi-liquid gel |
| Parameter | pH |
| Probe Type | Standard |
| Product Kit | Model: PHC201 Accessories Included: None |
| Range | 0 - 14 pH |
| Reference Type | Ag/AgCl (double junction) |
| Resolution | 0.001/0.01/0.1 |
| Sample depth | 15 mm (0.59 in.) |
| Sensor material | Epoxy |
| Sensor Type | pH Glass |
| Sodium (Alkalinity) error | <20% at pH 14 in 1 M NaCl |
| Special Features | General purpose. Clean water samples. |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | 0 - 80 °C (32 - 176 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: pH Minimum Sample Depth (mm): 15 |
| Thermistor | ATC |
| Warranty | 6 months |
| Weight | 0.1 kg |
| What's included? | IntelliCAL PHC201 Laboratory pH electrode with storage soaker bottle, 1 m cable, Test certificate, and Basic User Manual. |
