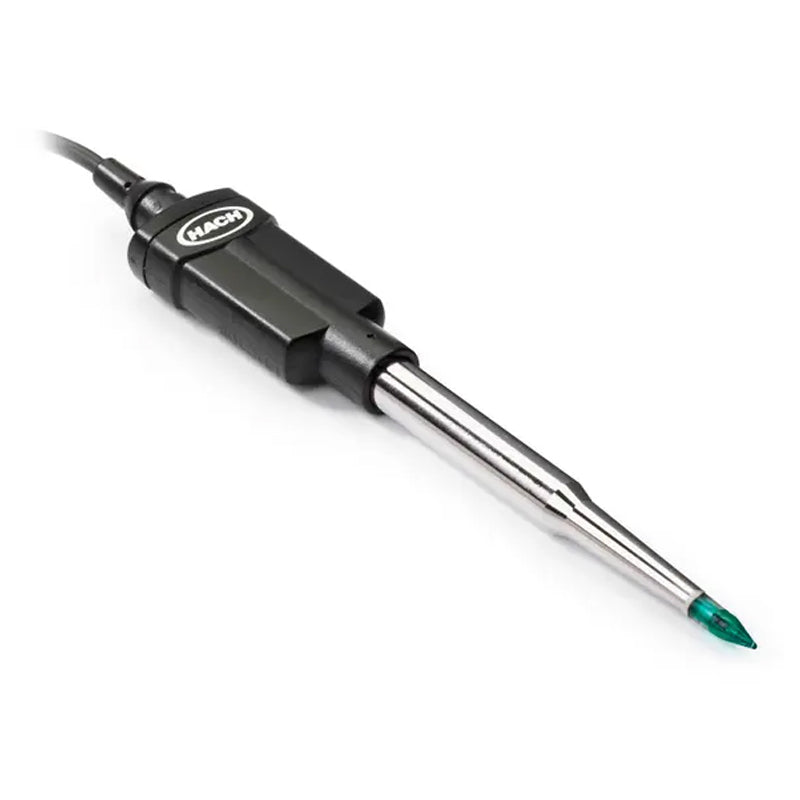

HACH IntelliCAL PHC108 Laboratory Puncture Stainless Steel pH Electrode, 1 m Cable PN.PHC10801
HACH IntelliCAL PHC108 Laboratory Puncture Stainless Steel pH Electrode, 1 m Cable PN.PHC10801
无法加载取货服务可用情况
* Please consult before ordering
IntelliCALⓇ PHC108 is a digital combination puncture pH electrode with non-refillable colored electrolyte (polymer) with a ceramic pin plus an open reference junctions, and built-in temperature sensor. The PHC108 has an easy to clean stainless steel body perfect for use in the food industries. Thanks to its spear-shaped glass sensor the PHC108 is specifically designed to measure pH in semi-solid samples. The PHC108 is not suitable for use with organic solvents, low ionic strength or high alkaline sample types.
Benefits
IntelliCAL digital probes provide ultimate traceability in measurement history
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
IntelliCAL digital probes alert the user when re-calibration is needed
No guesswork needed to provide the most reliable and accurate results with each measurement.
IntelliCAL digital probes can be moved between meters without the need to re-calibrate or re-enter measurement settings
Ideal for a multi-user environment with multiple HQD series laboratory and portable meters.
IntelliCAL digital electrodes can be moved between meters without the need to re-calibrate or re-enter measurement settings
Specifications
Technical Attributes
| Accuracy | ±0.02 pH |
| Application | Piercing / Semi-Solids |
| Cable Length | 1 m (3.28 ft) |
| Electrode Type | Non-Refillable Gel Reference Element |
| Junction | Porous Pin & Open Junctions |
| Kit? | No |
| Length | 182 mm (7.17 in.) |
| Method Type | Laboratory: RedRod / Refillable Reference Element |
| Parameter | pH |
| Probe Type | Standard |
| Product Kit | Model: PHC108 Accessories Included: None |
| Range | 2 - 12 pH |
| Reference Type | Ag/AgCl |
| Resolution | 0.001/0.01/0.1 |
| Sample depth | 15 mm (0.59 in.) |
| Sensor material | Stainless Steel |
| Sensor Type | pH Glass |
| Sodium (Alkalinity) error | <0.1 pH at pH 11 in 0.1 M NaCl |
| Special Features | For semi-solid media/samples |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | 0 - 60 °C (32 - 140 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: pH Minimum Sample Depth (mm): 15 |
| Thermistor | ATC |
| Warranty | 12 months |
| Weight | 0.1 kg |
| What's included? | IntelliCAL PHC108 Laboratory pH electrode with storage protector tube, 1 m cable, Test certificate, and Basic User Manual. |
