HACH IntelliCAL PHC101 Laboratory Low Maintenance Gel Filled pH Electrode, 1 m Cable PN.PHC10101
HACH IntelliCAL PHC101 Laboratory Low Maintenance Gel Filled pH Electrode, 1 m Cable PN.PHC10101
无法加载取货服务可用情况
* Please consult before ordering

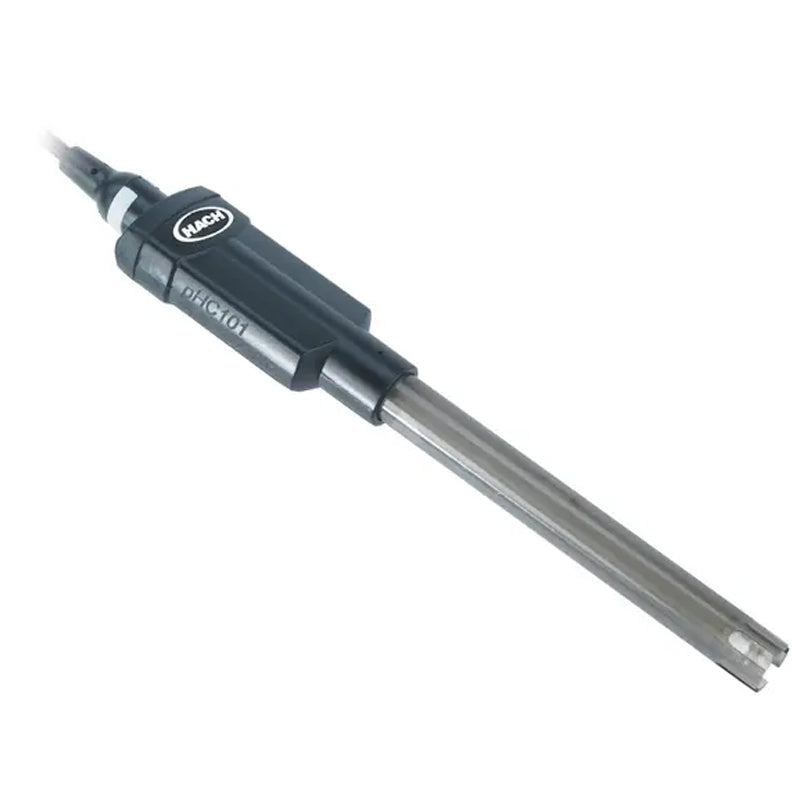

IntelliCALⓇ PHC101 is a digital combination pH electrode with built-in temperature sensor. PHC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction. The laboratory version of this pH electrode is shockproof with its epoxy plastic body protecting down to the glass bulb sensing element. The Electrode is available with a 3 or 1 m cable. The PHC101 electrode is ideal for measuring pH in wastewater, drinking water and general aqueous applications. The PHC101 is not suitable for use with organic solvents or samples with pH less than 2.
Benefits
IntelliCAL PHC101 provides fast, stable response in wastewater applications
Unique solid gel probe and open reference junction specifically designed for pH measurement in wastewater.
IntelliCAL digital pH probe provides ultimate traceability in measurement history
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and pH probe serial number
IntelliCAL digital pH probe alerts the user when re-calibration is needed
No guesswork needed to provide the most reliable and accurate results with each measurement.
IntelliCAL digital pH probe can be moved between meters without the need to re-calibrate or re-enter measurement settings
Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters.
Specifications
Technical Attributes
| Accuracy | ±0.02 pH |
| Application | Clean & Dirty Samples |
| Cable Length | 1 m (3.28 ft) |
| Electrode Type | Non-Refillable Gel Reference Element |
| Junction | Open Junction |
| Kit? | No |
| Length | 175 mm (6.89 in.) |
| Method Type | Field: Non-Refillable Gel Reference Element |
| Parameter | pH |
| Probe Type | Standard |
| Product Kit | Model: PHC101 Accessories Included: None |
| Range | 2 - 14 pH |
| Reference Type | Ag/AgCl |
| Resolution | 0.001/0.01/0.1 |
| Sample depth | 20 mm (0.79 in.) |
| Sensor material | Epoxy |
| Sensor Type | pH Glass |
| Sodium (Alkalinity) error | -0.6 pH at pH 12.6 in 1 M NaOH |
| Special Features | Double junction reference |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | 0 - 50 °C (32 - 122 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: pH Minimum Sample Depth (mm): 20 |
| Thermistor | ATC |
| Warranty | 6 months |
| Weight | 0.1 kg |
| What's included? | IntelliCAL PHC101 Laboratory pH electrode with storage soaker bottle, 1 m cable, Test certificate, and Basic User Manual. |
