HACH IntelliCAL PHC101 Field Low Maintenance Gel Filled pH Electrode, 10 m Cable PN.PHC10110
HACH IntelliCAL PHC101 Field Low Maintenance Gel Filled pH Electrode, 10 m Cable PN.PHC10110
无法加载取货服务可用情况
* Please consult before ordering
Intelligent HQD IntelliCAL Probe

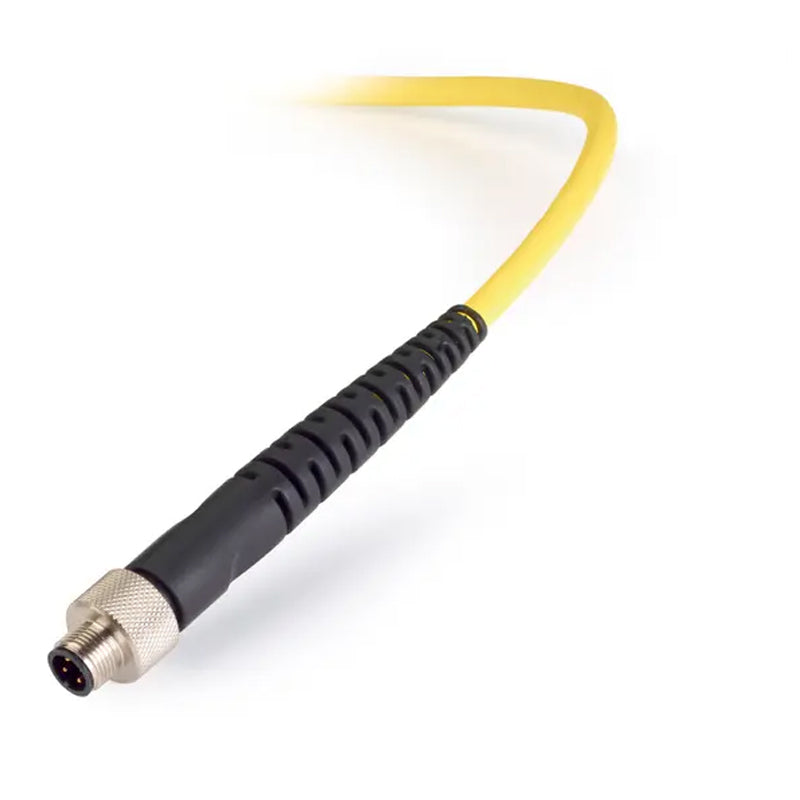

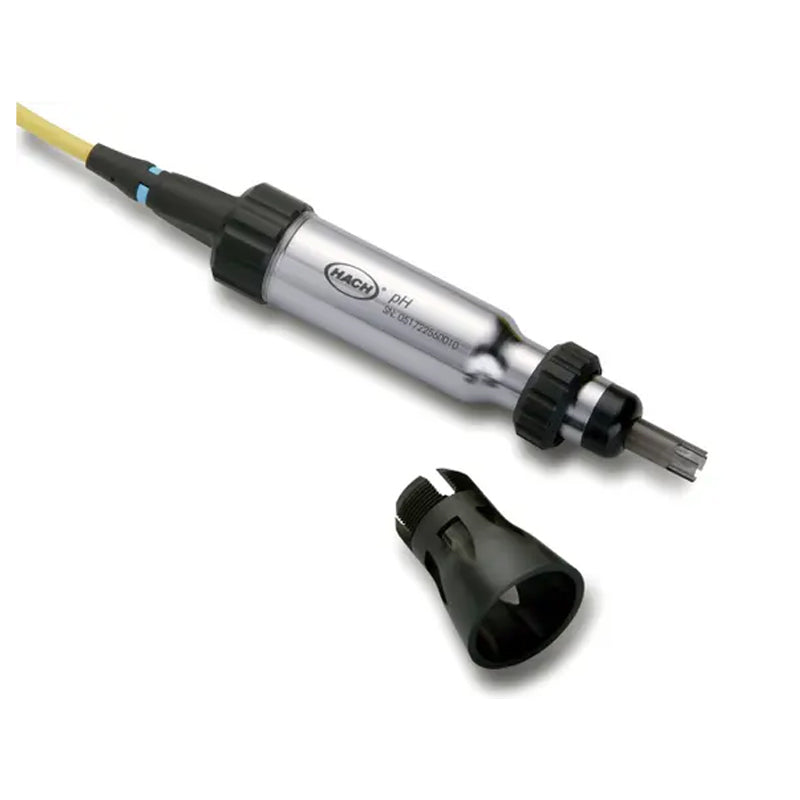

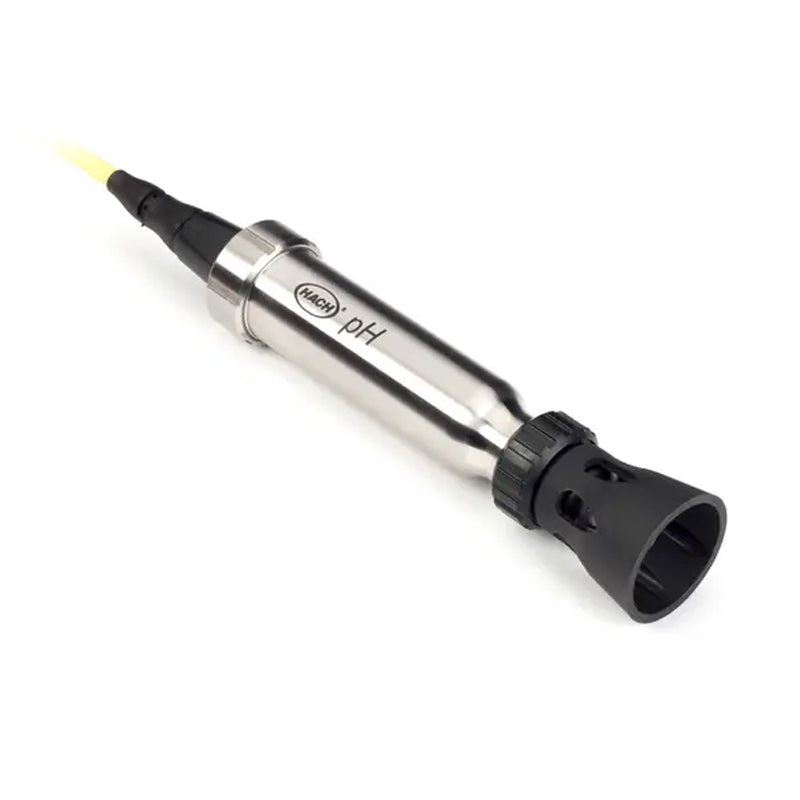

IntelliCALⓇ PHC101 is a digital combination pH electrode with built-in temperature sensor. PHC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction. This Rugged PHC101 version is built with a stainless steel body ensuring sufficient weight to the probe for an easy outside handling, the pH sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow coloured cable onto which you can clip depth markers (optional accessories), making the PHC101 rugged models specially designed for field use. PHC101 Rugged is available with a 5, 10, 15, or 30 meters cable. The PHC101 Rugged is ideal for measuring pH in all types of external environment such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes.
Benefits
IntelliCAL Rugged digital probes can reliably test in the harshest environmental conditions
Stainless steel body, polymer sensor shroud, and reinforced, steel-sheathed cables protect the probe for measurement anywhere in the field.
IntelliCAL digital probes provide ultimate traceability in measurement history
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
IntelliCAL digital probes alert the user when re-calibration is needed
No guesswork needed to provide the most reliable and accurate results with each measurement.
IntelliCAL digital probes can be moved between meters without the need to re-calibrate or re-enter measurement settings
Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters.
IntelliCAL rugged digital probes are waterproof up to 30 meters (IP67 rating)
Specifications
Technical Attributes
| Accuracy | ±0.02 pH |
| Application | Clean & Dirty Samples |
| Cable Length | 10 m (32.81 ft) |
| Electrode Type | Non-Refillable Gel Reference Element |
| Junction | Open Junction |
| Kit? | No |
| Length | 223 mm (8.73 in.) |
| Method Type | Field: Non-Refillable Gel Reference Element |
| Parameter | pH |
| Probe Type | Rugged |
| Product Kit | Model: PHC101 Accessories Included: None |
| Range | 2 - 14 pH |
| Reference Type | Ag/AgCl |
| Resolution | 0.001/0.01/0.1 |
| Sample depth | 20 mm (0.79 in.) |
| Sensor material | Zeonor™/ Stainless Steel |
| Sensor Type | pH Glass |
| Sodium (Alkalinity) error | -0.6 pH at pH 12.6 in 1 M NaOH |
| Special Features | Double junction reference |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | 0 - 50 °C (32 - 122 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: pH Minimum Sample Depth (mm): 20 |
| Thermistor | ATC |
| Warranty | 6 months |
| Water Resistance | IP67, waterproof for 24 hours at a depth of 30 meters |
| Weight | 1.15 kg |
| What's included? | IntelliCAL PHC101 Rugged pH electrode with storage cap, 10 m cable, Test certificate, and Basic User Manual. |
