HACH
HACH IntelliCAL MTC101 Field Low Maintenance Gel Filled ORP/RedOx Electrode, 10 m Cable PN.MTC10110
HACH IntelliCAL MTC101 Field Low Maintenance Gel Filled ORP/RedOx Electrode, 10 m Cable PN.MTC10110
无法加载取货服务可用情况
* Please consult before ordering

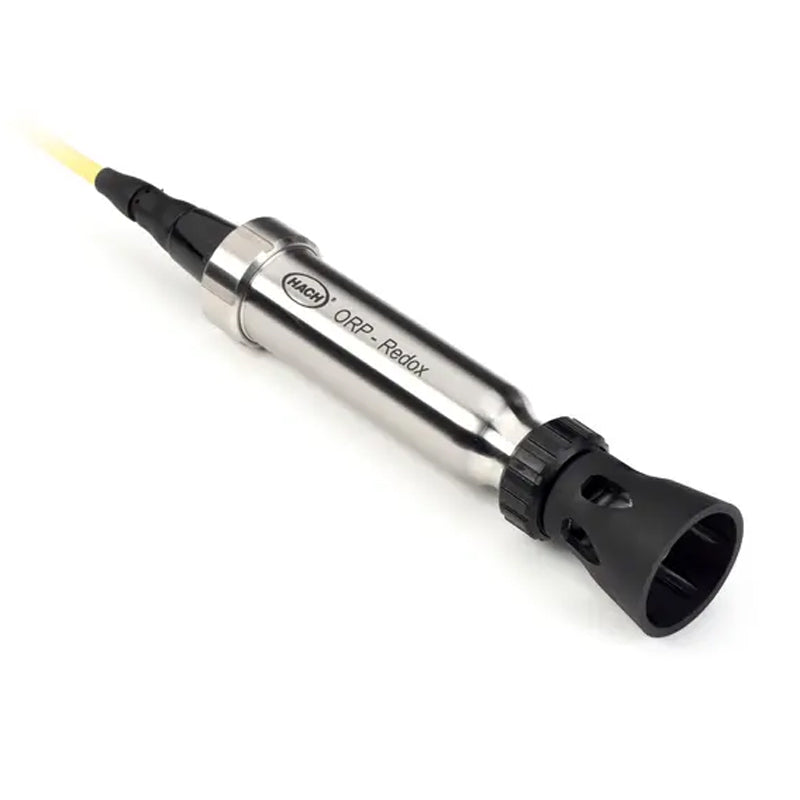

IntelliCALⓇ MTC101 is a digital combination oxidation reduction potential (ORP/RedOx) electrode with built-in temperature sensor. MTC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction. This Rugged MTC101 version is built with a stainless steel body ensuring sufficient weight to the probe for an easy outside handling, the Metal Platinum sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow coloured cable onto which you can clip depth markers (optional accessories), making the MTC101 rugged models specially designed for field use. MTC101 Rugged is available with a 5, 10, 15, or 30 meters cable. The MTC101 Rugged is ideal for measuring ORP/RedOx absolute mV values in all types of external environment such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes.
Benefits
IntelliCAL Rugged digital probes can reliably test in the harshest environmental conditions

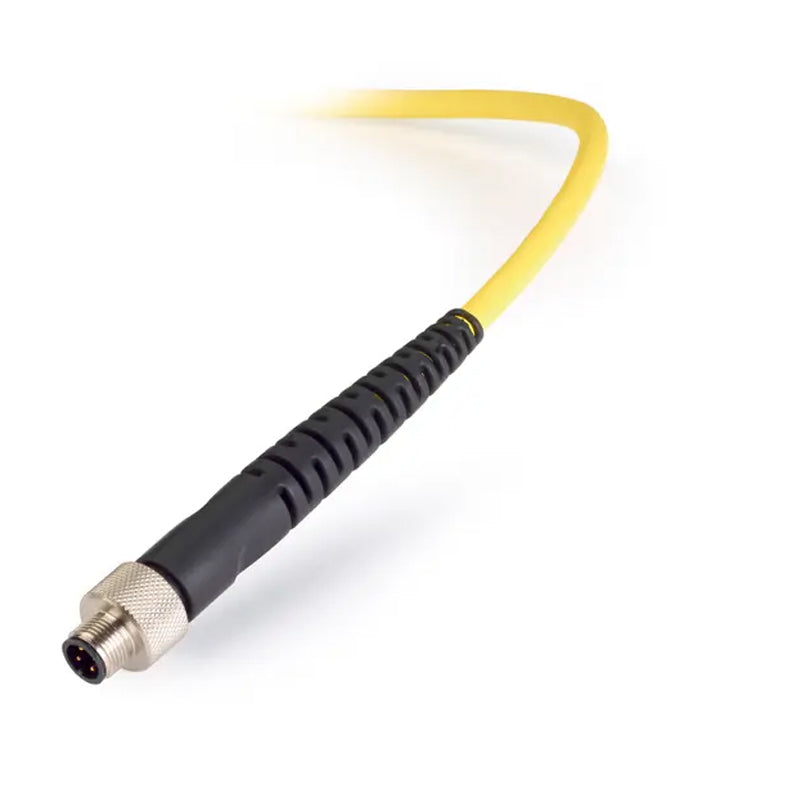

Stainless steel body, polymer sensor shroud, and reinforced, steel-sheathed cables protect the probe for measurement anywhere in the field
Ultimate traceability in measurement history
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
User alerted when re-calibration is needed
No guesswork needed to provide most reliable and accurate results with each measurement.
Can be moved between meters without the need to re-calibrate or re-enter measurement settings
Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters
IntelliCAL Rugged digital probes are waterproof up to 30 meters for 24 hours (IP67 rating)
Specifications
Technical Attributes
| Accuracy | ±0.02 mV or 0.05%, whichever is greater |
| Cable Length | 10 m (32.81 ft) |
| Electrode Type | Non-Refillable Gel Reference Element |
| Junction | Open Junction |
| Kit? | No |
| Length | 223 mm (8.73 in.) |
| Method Type | Field: Non-Refillable Gel Reference Element |
| Parameter | ORP |
| Probe Type | Rugged |
| Product Kit | Model: MTC101 Accessories Included: None |
| Range | ±1200 mV |
| Reference Type | Ag/AgCl |
| Resolution | ±0.1 mV |
| Sample depth | 20 mm (0.79 in.) |
| Sensor material | Epoxy / Stainless Steel |
| Sensor Type | Platinum disc |
| Special Features | Flat disc sensor for easy cleaning. |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | 0 - 80 °C (32 - 176 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: ORP Minimum Sample Depth (mm): 20 |
| Thermistor | ATC |
| Warranty | 6 months |
| Water Resistance | IP67, waterproof for 24 hours at a depth of 30 meters |
| Weight | 1.2 kg |
| What's included? | IntelliCAL MTC101 Rugged ORP/RedOx electrode with storage cap, 10 m cable, Test certificate, and Basic User Manual. |
