HACH IntelliCAL LDO101 Laboratory Luminescent/Optical Dissolved Oxygen (DO) Sensor, 1 m Cable PN.LDO10101
HACH IntelliCAL LDO101 Laboratory Luminescent/Optical Dissolved Oxygen (DO) Sensor, 1 m Cable PN.LDO10101
无法加载取货服务可用情况
Luminescence-based LDO technology for the lab

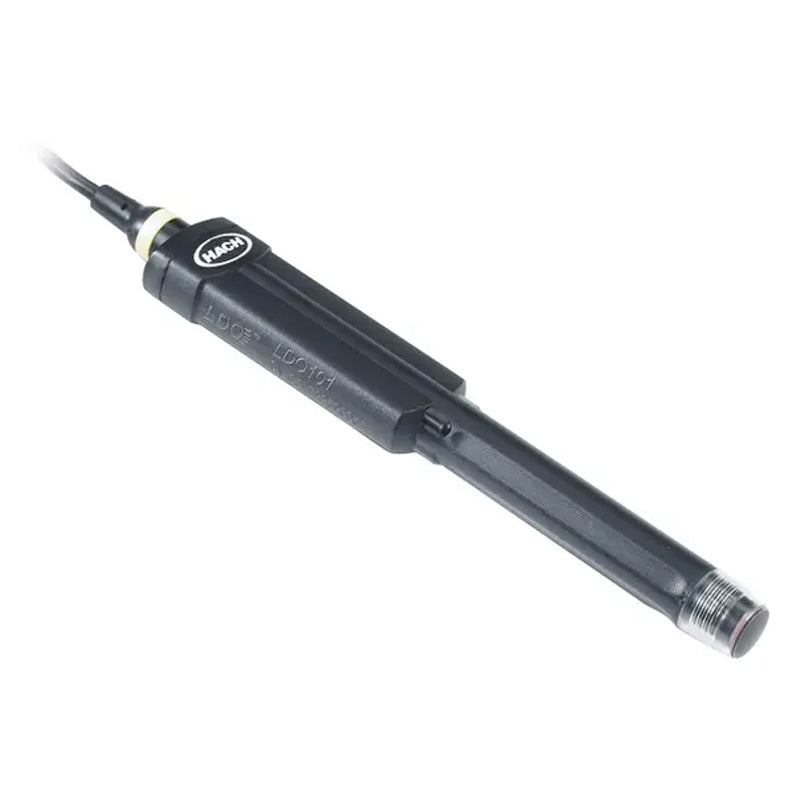

IntelliCALⓇ LDO101 is a digital, luminescent/optical dissolved oxygen (LDO) probe. The laboratory version is available with a 1 or 3 meters cable. The LDO101 is fitted with an automatic pressure sensor module and a temperature sensor. LDO101 probes are fully calibrated at the factory. New LDO101 probes no longer require iButtonsⓇ. The days in use tracking feature and the remaining sensor cap life reminder are initialized on the day of first use. The LDO101 is ideal for measuring dissolved oxygen in wastewater, drinking water and general water quality applications.
Benefits
Hach IntelliCAL LDO is a revolutionary breakthrough in the measurement of dissolved oxygen, eliminating the numerous reliability and maintenance concerns inherent of older DO measurement technologies.
The IntelliCAL LDO optical dissolved oxygen probe has no membranes to clean or replace, no electrolyte solution to replenish, and reduces calibration frequency. Trusted for dissolved oxygen measurement by thousands of facilities around the world.
IntelliCAL digital probes provide ultimate traceability in measurement history
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
IntelliCAL digital probes alert the user when re-calibration is needed
No guesswork needed to provide the most reliable and accurate results with each measurement.
IntelliCAL digital probes can be moved between meters without the need to re-calibrate or re-enter measurement settings
Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters.
Specifications
Technical Attributes
| Accuracy | ±0.1 mg/L from 0 to 8 mg/L|±0.2 mg/L for greater than 8 mg/L |
| Cable Length | 1 m (3.28 ft) |
| Electrode Type | Luminescent Dissolved Oxygen |
| Interferences | |
| Kit? | No |
| Length | 191 mm (7.52 in.) |
| Method Type | Laboratory: Luminescent Dissolved Oxygen |
| Parameter | Dissolved Oxygen |
| Pressure accuracy | ±0.8% |
| Pressure Resolution | 1 mbar (1 hPa) |
| Probe Type | Standard |
| Product Kit | Model: LDO101 Accessories Included: None |
| Range | 0.05 - 20.0 mg/L 1 - 200% saturation |
| Resolution | 0.01/0.1 (5 digits max.) |
| Sample depth | 10 mm (0.394 in.) |
| Saturation resolution | 0.1 |
| Sensor material | Polycarbonate / ABS |
| Sensor Type | Lumiphore |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | 0 - 50 °C (32 - 122 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: Dissolved Oxygen Minimum Sample Depth (mm): 10 |
| Thermistor | ATC |
| Warranty | 36 months |
| Weight | 0.12 kg |
| What's included? | IntelliCAL LDO101 Laboratory Luminescent Dissolved Oxygen (LDO) probe, 1 m cable, protective shroud kit, DO cap, and Basic User Manual. |
