HACH IntelliCAL LBOD101 Luminescent/Optical Dissolved Oxygen (LDO) Sensor for BOD Measurements, 1 m Cable PN.LBOD10101
HACH IntelliCAL LBOD101 Luminescent/Optical Dissolved Oxygen (LDO) Sensor for BOD Measurements, 1 m Cable PN.LBOD10101
无法加载取货服务可用情况
* Please consult before ordering
A Breakthrough in BOD Measurement!
Hach LBOD IntelliCAL probe uses patented LDO technology to deliver superior confidence in results.

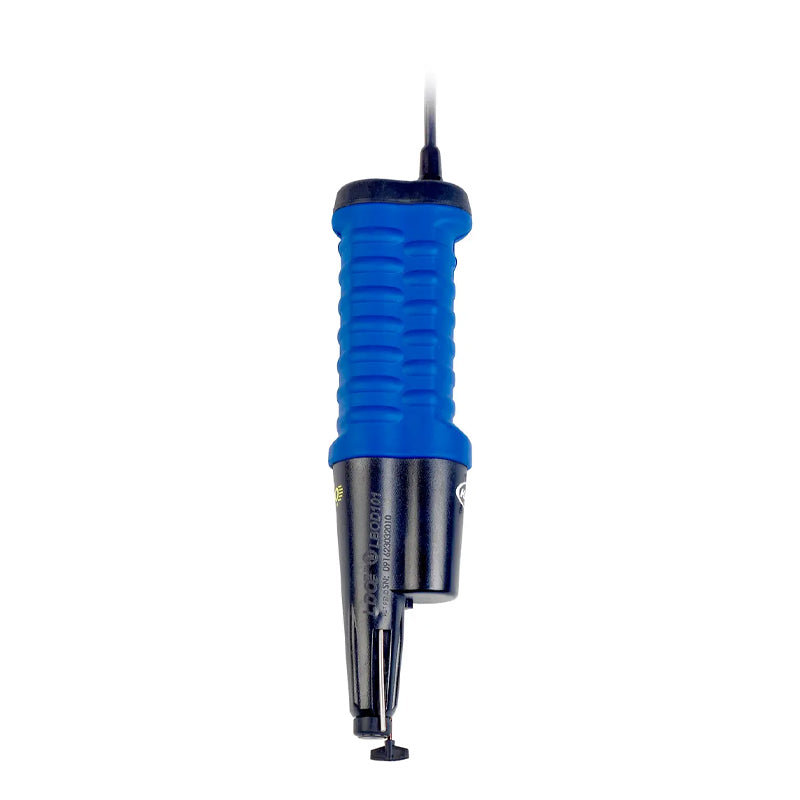

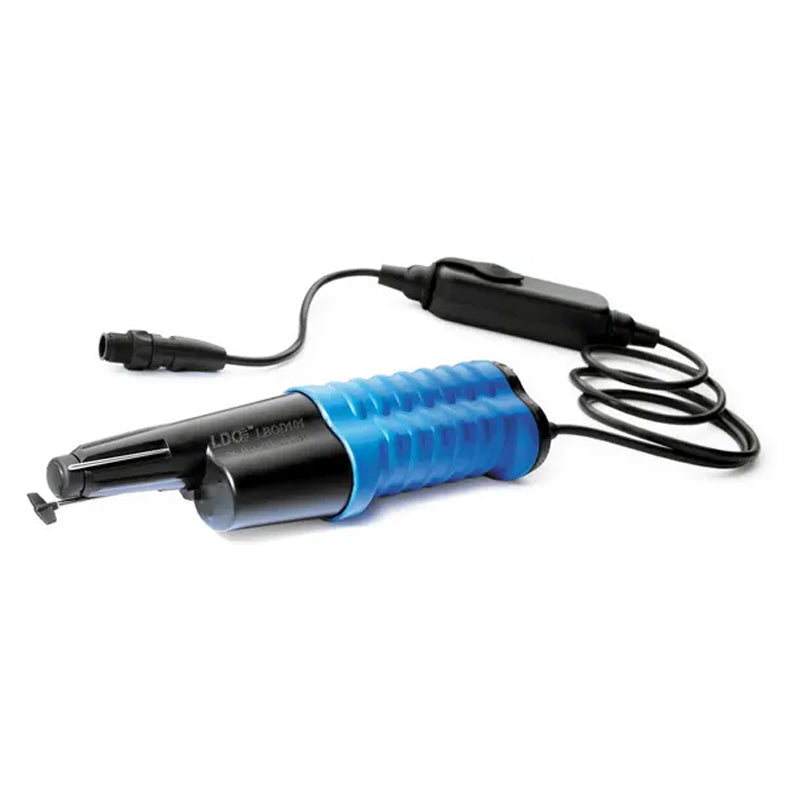

IntelliCALⓇ LBOD101 is the latest embodiment of Hach’s patented Luminescent Dissolved Oxygen (LDO) technology. The LBOD101 is a digital, luminescent dissolved oxygen (LDO) sensor with a replaceable, integrated stirring system. The LBOD101 measures the dissolved oxygen for BOD (Biochemical Oxygen Demand) determination in BOD bottles in BOD5 testing applications. The LBOD101 probe is used for initial and final dissolved oxygen measurements. The LBOD101 is fitted with an automatic pressure sensor module. The DO sensing cap comes with an iButton to track days in use and remind remaining life of the sensing cap element.
Benefits
The Hach IntelliCAL LBOD101 optical dissolved oxygen probe improves confidence in the BOD5 testing procedure by reducing variance and maintenance while increasing stability, accuracy, precision, and efficiency (tests per unit time).
The IntelliCAL LBOD101 probe has no membranes to foul or replace, no electrolyte solution to replenish, and fast, reliable 2-point calibration that stabilizes quickly. Additionally, there is no 30-minute polarization and warm-up time with the LBOD101 probe.
IntelliCAL LBOD101 low maintenance requirements keeps lab down-time to a minimum
The IntelliCAL LBOD101 has no membranes to replace (lower cost of ownership), features a replaceable stirrer assembly and a long-life patented magnetic-based motor that is also replaceable.
IntelliCAL digital probes provide ultimate traceability in measurement history
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number.
IntelliCAL digital probes can be moved between meters without the need to re-calibrate or re-enter measurement settings
Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters.
Specifications
Technical Attributes
| Accuracy | ±0.05 mg/L from 0 to 10 mg/L|±0.1 mg/L for greater than 10 mg/L |
| Cable Length | 1.8 m (5.91 ft) |
| Dimensions (D x L) | 15.875 mm x 215 mm (8.46 in.) |
| Electrode Type | Luminescent Dissolved Oxygen |
| Length | 215 mm (8.46 in.) |
| Method Type | Laboratory: Luminescent Dissolved Oxygen |
| Parameter | BOD |
| Pressure accuracy | ±3 mbar (0.3 kPa) |
| Pressure Resolution | 5 mbar (0.5 kPa) |
| Probe Type | Standard |
| Product Kit | Model: LBOD101 Accessories Included: None |
| Range | 0.05 - 20.0 mg/L 1 - 200% saturation |
| Resolution | 0.01/0.1 |
| Sample depth | 10 mm (0.394 in.) |
| Saturation accuracy | ±0.59% of reading |
| Saturation resolution | 0.1 |
| Sensor Cable | 1.8 m |
| Sensor material | Polycarbonate / ABS |
| Sensor Type | Lumiphore |
| Special Features | Integrated stirring system. |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | 0 - 50 °C (32 - 122 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: BOD Minimum Sample Depth (mm): 10 |
| Thermistor | ATC |
| Warranty | 12 months |
| Weight | 0.22 kg |
| What's included? | IntelliCAL LBOD101 Luminescent Dissolved Oxygen (LDO) sensor for BOD measurement, DO Cap with its iButton (already mounted), Test certificate, and Basic User Manual. |
