HACH IntelliCAL CDC401 Laboratory 4-Poles Graphite Conductivity Cell, 3 m Cable PN.CDC40103

HACH IntelliCAL CDC401 Laboratory 4-Poles Graphite Conductivity Cell, 3 m Cable PN.CDC40103

¥6,124.05 CNY
¥6,585.00 CNY ¥6,124.05 CNY
促销 售罄

* Please consult before ordering

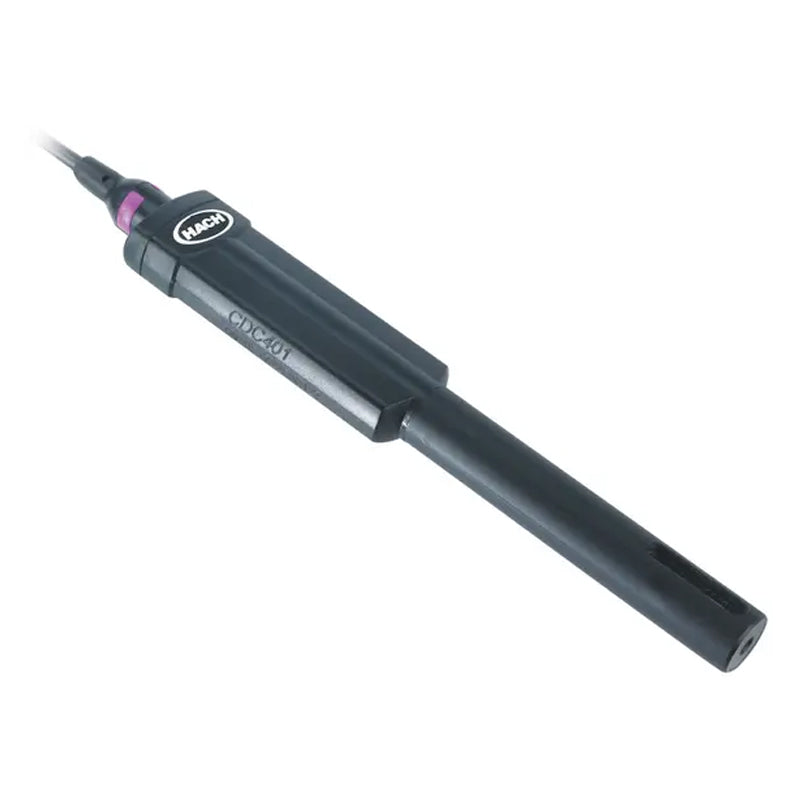

IntelliCALⓇ CDC401 is a digital, graphite, 4-pole conductivity cell with a temperature sensor. The standard version is available with a 3 or 1 m cable and is intended for laboratory use. The CDC401 is ideal for measuring electrical conductivity, salinity, resistivity, or total dissolved solids (TDS) in wastewater, drinking water, or general water quality applications.

Benefits

IntelliCAL digital probes provide ultimate traceability in conductivity measurement history

Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number.

IntelliCAL CDC401 digital conductivity probes alert the user when re-calibration is needed

No guesswork needed to provide the most reliable and accurate results with each measurement.

IntelliCAL CDC401 digital conductivity probes can be moved between meters without the need to re-calibrate or re-enter measurement settings

Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters.

Specifications



Technical Attributes

Accuracy Cond: ±0.5% of reading|TDS: ±0.5% ±1 digit|Salinity: ±0.1, ±1 digit
Cable Length 3 m (9.84 ft)
Electrode Type Conductivity Cell;
4 Poles - Graphite
Kit? No
Length 184 mm (7.24 in.)
Method Type Field: 4 Poles - Graphite
Parameter Conductivity
Probe Type Standard
Product Kit Model: CDC401
Accessories Included: None
Range Conductivity: 0.0 µS/cm - 200 mS/cm
TDS: 0.00 mg/L - 50.0 g/L as NaCl
Salinity: 0 - 42 ppt or ‰
Resistivity: 2.5 Ωcm - 49 MΩcm
Resolution 0.01/0.1 (5 digits max.)
Sample depth 45 mm (1.77 in.)
Sensor material Noryl
Sensor Type 4-poles conductivity probe, Graphite, k = 0.40 cm-1
Temperature Accuracy ±0.3 °C (±0.54 °F)
Temperature Range -10 - 110 °C (14 - 230 °F)
Temperature Resolution 0.1 °C (0.18 °F)
Test requirements Parameter Needed: Conductivity
Minimum Sample Depth (mm): 45
Thermistor ATC
Warranty 12 months
Weight 0.1 kg
What's included? IntelliCAL CDC401 Laboratory Conductivity Cell, 3 m cable, Test certificate, and Basic User Manual.
