HACH IntelliCAL CDC401 Field 4-Poles Graphite Conductivity Cell, 5 m Cable PN.CDC40105
HACH IntelliCAL CDC401 Field 4-Poles Graphite Conductivity Cell, 5 m Cable PN.CDC40105
无法加载取货服务可用情况
* Please consult before ordering

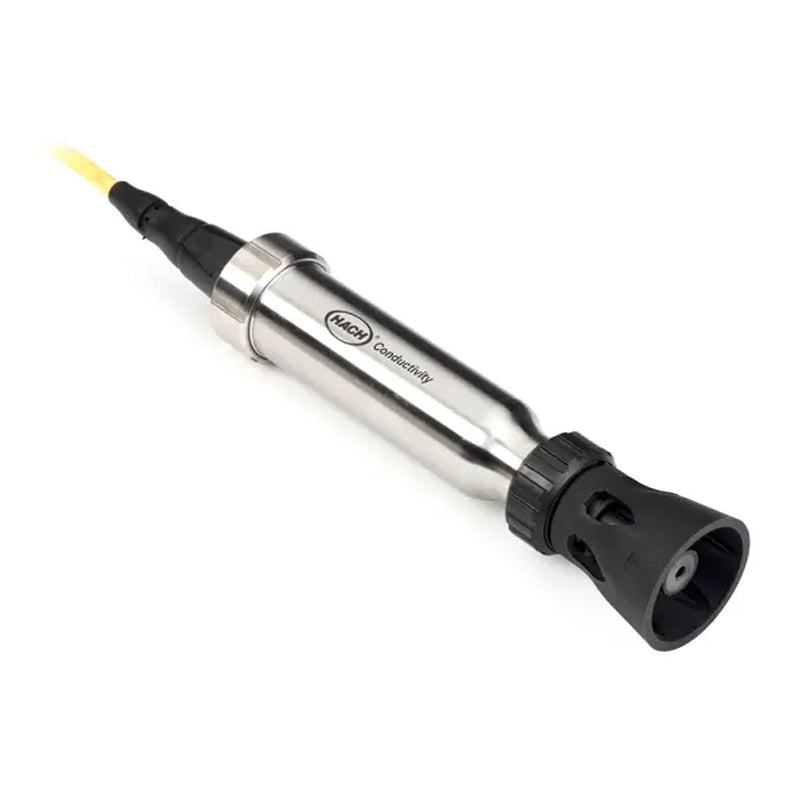

IntelliCALⓇ CDC401 is a digital, graphite, 4-pole conductivity cell with a temperature sensor. This Rugged CDC401 version is built with a stainless steel body ensuring sufficient weight to the probe for an easy outside handling, the sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow coloured cable onto which you can clip depth markers (optional accessories), making the CDC401 rugged models specially designed for field use. CDC401 Rugged is available with a 5, 10, 15, or 30 meters cable. The CDC401 Rugged is ideal for measuring electrical conductivity, salinity, resistivity, or total dissolved solids (TDS) in all types of external environment such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes.
Benefits
IntelliCAL Rugged digital probes can reliably measure conductivity in the harshest environmental conditions

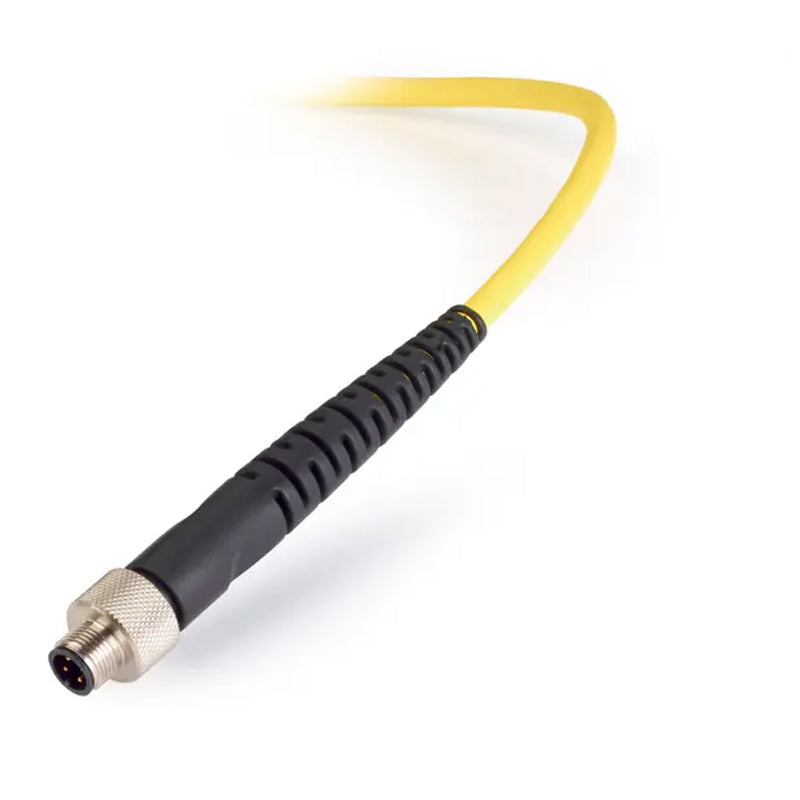

Stainless steel body, polymer sensor shroud, and reinforced, steel-sheathed cables protect the probe for measurement anywhere in the field.
IntelliCAL digital probes provide ultimate traceability in measurement history
Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
IntelliCAL CDC401 digital conductivity probes alert the user when re-calibration is needed
No guesswork needed to provide the most reliable and accurate results with each measurement.
IntelliCAL CDC401 digital conductivity probes can be moved between meters without the need to re-calibrate or re-enter measurement settings
Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters.
IntelliCAL CDC401 rugged digital conductivity probes are waterproof up to 30 meters for 24 hours (IP67 rating)
Specifications
Technical Attributes
| Accuracy | Cond: ±0.5% of reading|TDS: ±0.5% ±1 digit|Salinity: ±0.1, ±1 digit |
| Cable Length | 5 m (16.40 ft) |
| Electrode Type | Conductivity Cell; 4 Poles - Graphite |
| Kit? | No |
| Length | 223 mm (8.73 in.) |
| Method Type | Field: 4 Poles - Graphite |
| Parameter | Conductivity |
| Probe Type | Rugged |
| Product Kit | Model: CDC401 Accessories Included: None |
| Range | Conductivity: 0.0 µS/cm - 200 mS/cm TDS: 0.00 mg/L - 50.0 g/L as NaCl Salinity: 0 - 42 ppt or ‰ Resistivity: 2.5 Ωcm - 49 MΩcm |
| Resolution | 0.01/0.1 (5 digits max.) |
| Sample depth | 45 mm (1.77 in.) |
| Sensor material | Noryl / Stainless Steel |
| Sensor Type | 4-poles conductivity probe, Graphite, k = 0.40 cm-1 |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | -10 - 110 °C (14 - 230 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: Conductivity Minimum Sample Depth (mm): 45 |
| Thermistor | ATC |
| Warranty | 12 months |
| Water Resistance | IP67, waterproof for 24 hours at a depth of 30 meters |
| Weight | 0.8 kg |
| What's included? | IntelliCAL CDC401 Rugged Conductivity Cell, 5 m cable, protective shroud kit, Test certificate, and Basic User Manual. |
