HACH HQD HQ411D Laboratory Starter pH Meter Package with PHC201 General Purposes pH Electrode PN.8507560
HACH HQD HQ411D Laboratory Starter pH Meter Package with PHC201 General Purposes pH Electrode PN.8507560
无法加载取货服务可用情况

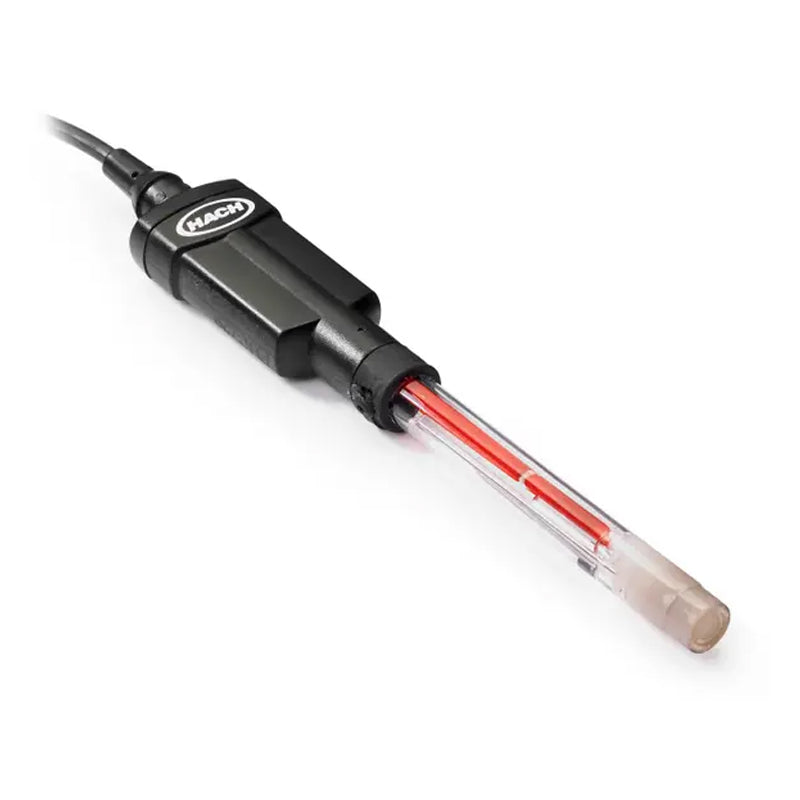

Designed for water quality experts, the Hach HQ411D Laboratory pH-Meter is an advanced laboratory meter that takes the guesswork out of measurements. HQD meters connect with smart IntelliCALⓇ electrodes that automatically recognize the testing parameter, calibration history, and method settings to minimize errors and setup time. The advanced HQD Laboratory Meter is designed to withstand years of continuous lab use. HQD meters feature a simple user interface that does not require manuals or training to operate. The IntelliCAL PHC201 is a digital robust plastic body, combination pH electrode with a non-refillable, gel-filled double-junction reference and built-in temperature sensor. PHC201 is intended for laboratory use. The PHC201 has a ceramic pin reference junction and is ideal for measuring pH in general water quality applications.
Benefits
Make your pH water laboratory quality parameters testing samples more efficient and flexible
High quality laboratory pH meter digitally deliver reliable measuring results with the aid of intelligent electrodes: Digital IntelliCAL pH electrodes always measure correctly due to their integrated calibration memory. IntelliCAL pH electrodes are recognized automatically and are interchangeable. This principle of mix + match makes sure you measure as reliable, flexible and simple as already known from the portable HQD pH meter range.
Optimal handling for every user
HQD laboratory bench instruments are easy to use thanks to the intuitively understandable user interface enabling one-touch measurements. Measuring intervals can be defined by the user. Progress of stabilization is automatically indicated on the display; readings are automatically logged.
Immediately understandable and easy to read
Large, illuminated graphic displays is easy to read, even in difficult light conditions. The instruments‘ key pads are icon-based and immediately understandable. User interface and operating instructions are available in multiple languages.
Complete Good Laboratory Practice (GLP) compliant communication and documentation
All the necessary information about each reading is automatically saved. Internal USB ports simplify data transfer, peripherals, and software updates and connection to PCs printer and keyboards.
Complete convenient kit
Package content includes everything you need to start testing. Details below
Specifications
Technical Attributes
| Automatic Buffer Recognition | Yes |
| Calibration Intervals/Alerts/Reminder | Off, selectable from 2 hours to 7 days |

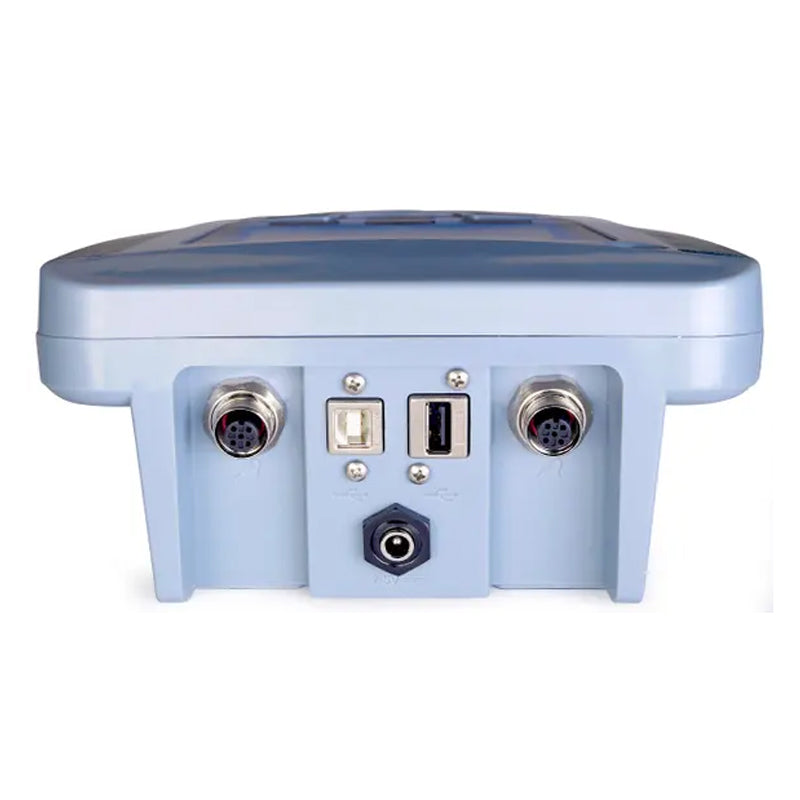

| Communication | Integrated USB type A (for USB 2.0 flash memory device, printer, keyboard) and Integrated USB type B (for PC) |
| Compliance Certifications | CE.WEEE |
| Contents | Meter + Probe(s) + Lab. Accessories + Reagents |
| Custom Calibration Standards | Yes |
| Data Export | Download via USB connection to PC or flash memory device. Automatically transfer entire data log or as readings are taken. |
| Data Memory | 500 records/FIFO |
| Data Storage | Automatic, GLP ISO compliant reading data stored with calibration details. |
| Dimensions | 859 x 175 x 235 mm (3.38 x 6.88 x 9.25 in.) |
| Display | Detailed mode/Large mode |
| Display Type | 440 x 160 pixel LCD with backlight illumination |
| Electrode Holder | NA |
| Electrode stand | Included |
| GLP Features | Date; Time; Sample ID; Operator ID |
| Instrument | Bench |
| IP Rating | IP54 (Resistant to spray of water; Dust-proof) |
| Kit? | Yes |
| Languages | English, French, German, Italian, Spanish, Danish, Dutch, Polish, Portuguese, Turkish, Swedish, Czech, Russian |
| Lock Function | Continuous / Auto-stabilization ("press to read") / At Interval |
| Measurement Method | Probe specific programmed method settings |
| Model | HQ411D – pH/1 Channel |
| mV Measurement at Stable Reading | Yes |
| mV Measurement Range | -1500 - 1500 |
| mV Resolution | 0.1 mV |
| Needed Cable Length | 1 |
| Operating Error Messages | Clear text error messages displayed |
| Operating Humidity | 90 % relative humidity (non-condensing) |
| Operating Interface | Soft Touch Keypad |
| Operating Temperature | 0 - +60 °C (32 - 140 °F) |
| ORP Electrode Calibration | Predefined ORP standards (including Zobell's solution) |
| Parameter | pH/Oxydo Reduction Potential (ORP) |
| PC Data Transfer Software | HQD Series Meter Data Transfer Utility |
| pH Buffer Sets | Color-coded: 4.01, 7.00, 10.01 pH; IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45 pH DIN: 1.09, 4.65, 9.23 pH User-defined custom buffer sets |
| pH Electrode calibration | 1 - 3 Calibration points Calibration summary data logged and displayed |
| pH Measurement Range | 0 - 14 pH |
| pH Resolution | Selectable: 0.001/0.01/0.1 pH |
| Printer | Yes, Optional |
| Probes included | PHC20101 |
| Sensor A | PHC20101 |
| Sensor B | NA |
| Sensor C | NA |
| Sensors | Sensor A: PHC20101 Sensor B: NA Sensor C: NA |
| Temperature Compensation | Automatic Temperature compensation for pH |
| Temperature Measurement | °C or °F |
| Temperature Range | -10°C - 110 °C |
| Temperature Resolution | 0.1 |
| Type of measurement | Lab Water Quality applications. |
| Warranty | 36 months |
| Weight | 750 g (1.65 lb) without batterie; 850 g (1.87 lb) with batteries |

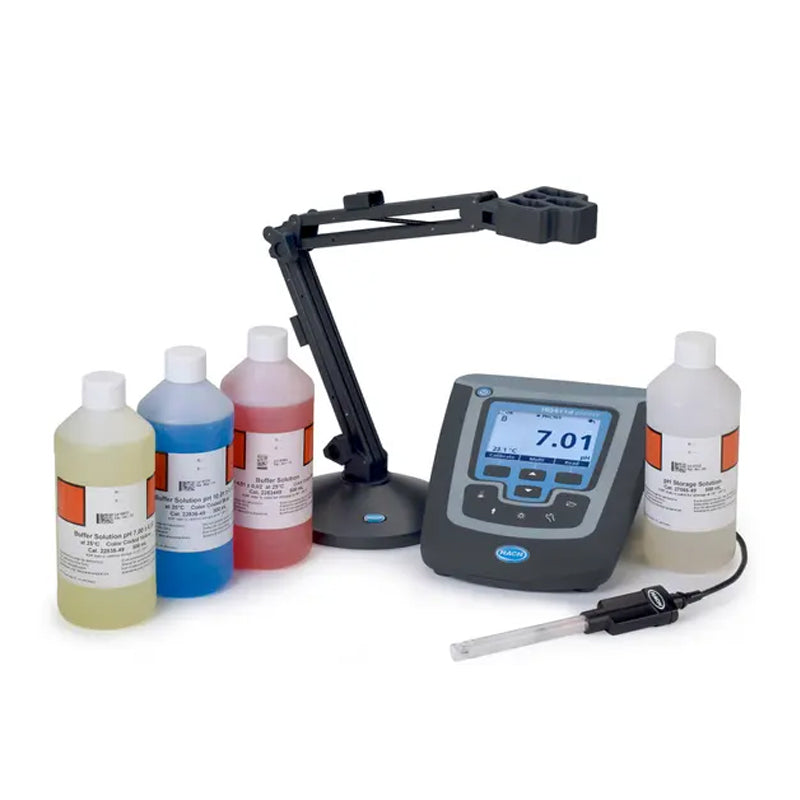

| What's included? | Meter package includes HQ411D Laboratory pH Meter, Universal electrode Stand with electrode holder, PHC201 Standard Gel Filled pH Electrode with 1 m cable, pH Buffer Kit 4,01/7,00/10,01 (500 mL), pH electrode storage solution (500 mL), 4 Alkaline 1,5V AA batteries, Power Supply Adapter, Power Cord, and Operating Documentation. |
