HACH DR1900 Portable Spectrophotometer with USB+Power Module PN.DR1900-05K&9624700
HACH DR1900 Portable Spectrophotometer with USB+Power Module PN.DR1900-05K&9624700
无法加载取货服务可用情况
* Please consult before ordering
Lab methods in the palm of your hand

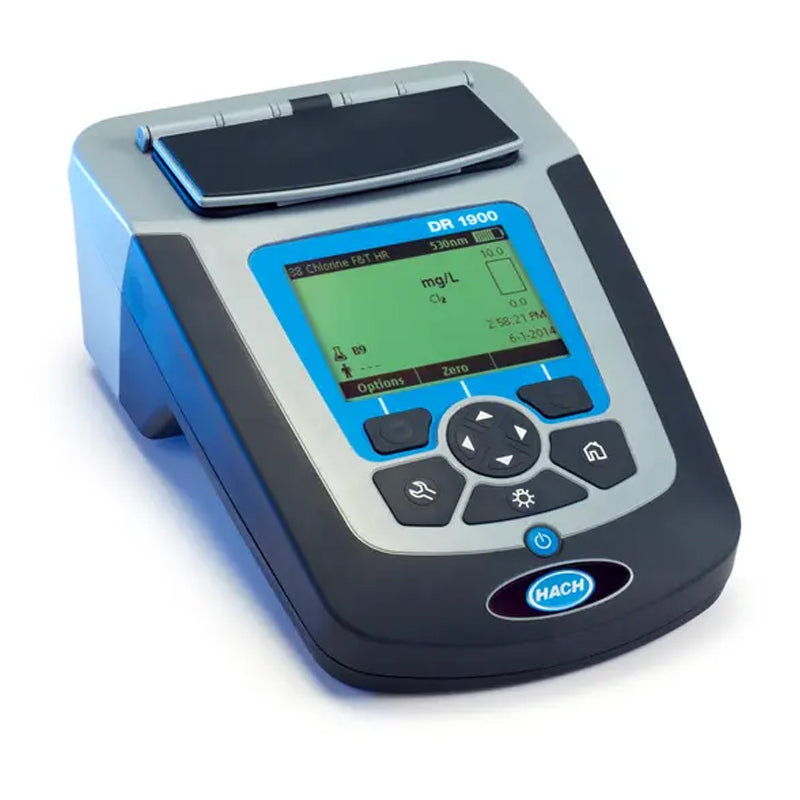

The DR1900 is perfect for use in the field because it is the lightest and most compact portable spectrophotometer. It also can perform that largest number of tests of any portable instrument. Underneath the rugged exterior, the DR1900 has the largest number--over 220--of the most commonly tested preprogrammed methods already built in. You can also use the easy-to-use interface to create your own methods. Also, it is flexible because you can use the widest range of vial sizes of any other spectrophotometer.
Portability - Easy to hold, and operate, the compact DR1900 is a valuable tool for your field technicians. This is lightest and smallest spec on the market.
Accuracy - Tests are performed with a wavelength range of 340 to 800 nm, which make this a field instrument you can use to find results typically only seen in laboratory instruments.
Ruggedness - The DR1900 is built for rugged conditions. Built as a hand-held spec the DR1900 has a large, clear screen and a simple user interface that makes testing easier than ever in even the most demanding conditions.
Upgrade from your DR2800 or order a new DR1900 today!
Please note: TNTplus vial test evaluation is possible, but it does not have the barcode identification & 10-fold measurement and outlier elimination options available.

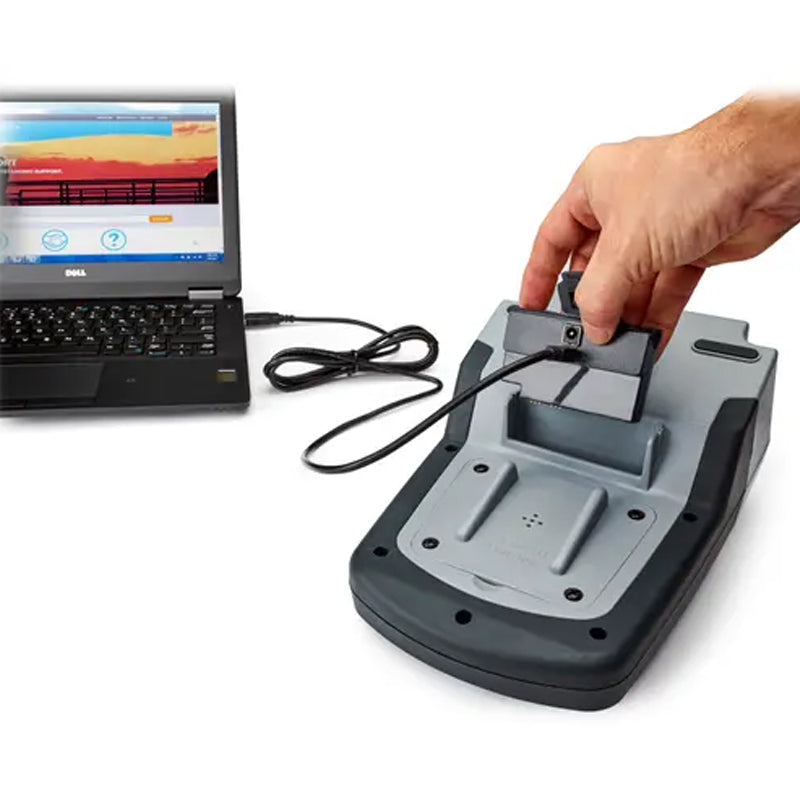

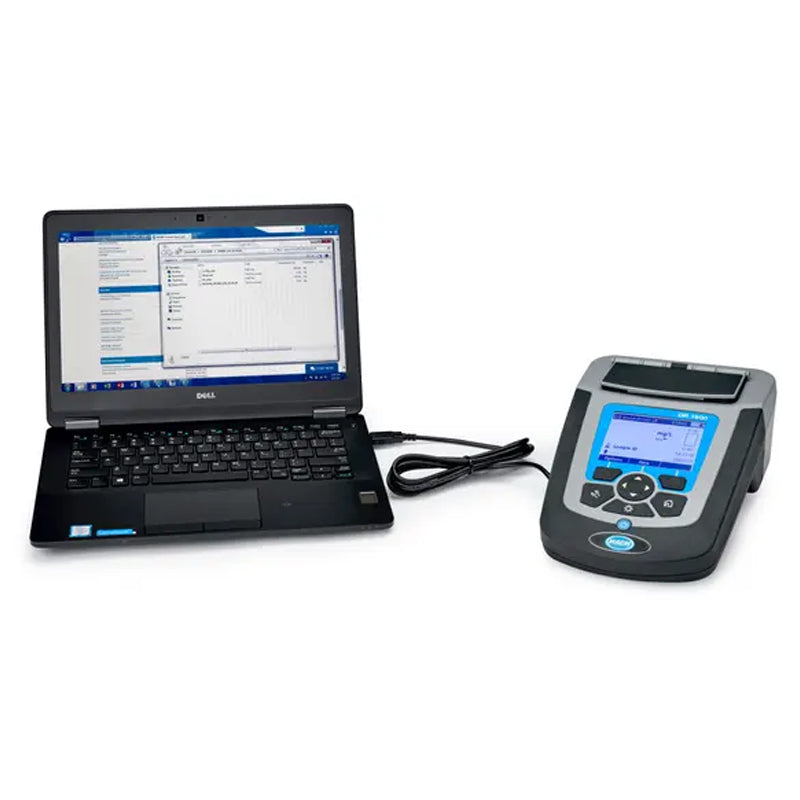

Bundle includes the DR1900 Portable Spectrophotometer and USB with power module (LZV813) allowing data transfer and line power options.
Benefits
Carry anywhere due to a thoughtful, compact design
Test what you need
Ensure accuracy in the field
Make testing easier with clear, easy-to-use interface
Secure in your environment - water and dust-proof design
Specifications
Technical Attributes
| Battery Life | 15 days (typical) @ 5 readings a day / 5 day week without backlight* * Backlight usage will decrease battery life. |
| Battery Requirements | 4, AA size alkali cells |
| Data Logger | 500 measured values (Result, Date, Time, Sample ID, User ID acc. to GLP) |
| Detector | Silicon photodiode |
| Dimensions (H x W x D) | 98 mm x 178 mm x 267 mm |
| Display | Graphical display 240 x 160 pixel (LCD, b/w, backlit) |
| Enclosure Rating | IP67 |
| Interfaces | USB type Mini IP67 (with USB + Power Module) |
| Mains Connection 2 | 110 - 240 V / 50/60 Hz (* optional Module required. May not be available in all regions) |
| Mains Connection 3 | 4x NiMH rechargeable Battery (* optional Module required. May not be avaliable in all region) |
| Operating Conditions | 10 - 40 °C (50 - 104 °F), max. 80 % relative humidity (non-condensing) |
| Operating Humidity | Max. 80 % relative humidity (non-condensing) |
| Operating Mode | Transmittance (%), Absorbance and Concentration |
| Operating Temperature | 10 - 40 °C |
| Optical System | Reference beam, spectral |
| Photometric Accuracy | ± 0.003 Abs @ 0.0 - 0.5 Abs |
| Photometric Linearity | < 0.5 % (0.5 - 2.0 Abs) |
| Photometric Measuring Range | 0 - 3 Abs (wavelength range 340 - 800 nm) |
| Power Module? | Yes |
| Power Supply | 4 x AA size Alkaline 4x NiMH rechargeable Battery Power supply: 110 - 240 V; 50/60 Hz |
| Reproducibility | ± 0.005 Abs (0 - 1 A) |
| Sample Cell Compatibility | 10 mm square / 1 inch square and 13 mm / 16 mm / 1 inch round |
| Source Lamp | Xenon Flash |
| Storage Conditions | -30 - 60 °C (-22 - 140 °F), max. 80 % relative humidity (non-condensing) |
| Stray Light | < 0.5 %T at 340 nm with NaNO2 |
| Temperature Range | 0 - 50 °C (32 - 122 °F) |
| User Interface Languages | English, French, German, Italian, Spanish, Portuguese, Bulgarian, Chinese, Czech, Danish, Dutch, Finnish, Greek, Hungarian, Japanese, Korean, Polish, Romanian, Russian, Slovenian, Swedish, Turkish |
| User Programs | 50 |
| Warranty | 12 months |
| Wavelength Accuracy | ± 2 nm (range 340 - 800nm) |
| Wavelength Calibration | Automatic |
| Wavelength Range | 340 - 800 nm |
| Wavelength Selection | Automatic |
| Weight | 1.5 kg |
| What's included? | Includes: portable spectrometer, printed basic instrument manual, dust cover, 1-in. square matched glass sample cells, AA alkaline batteries 4/pk, a four-type vial adapter set, and a USB + Power module (LZV813.99.00002). |
