HACH AT1000 Potentiometric Titrator with 2 Burettes and 2 Pumps - Model AT1222 PN.AT1222.97
HACH AT1000 Potentiometric Titrator with 2 Burettes and 2 Pumps - Model AT1222 PN.AT1222.97
无法加载取货服务可用情况
Accurate and reliable titrations without all the costs and complications

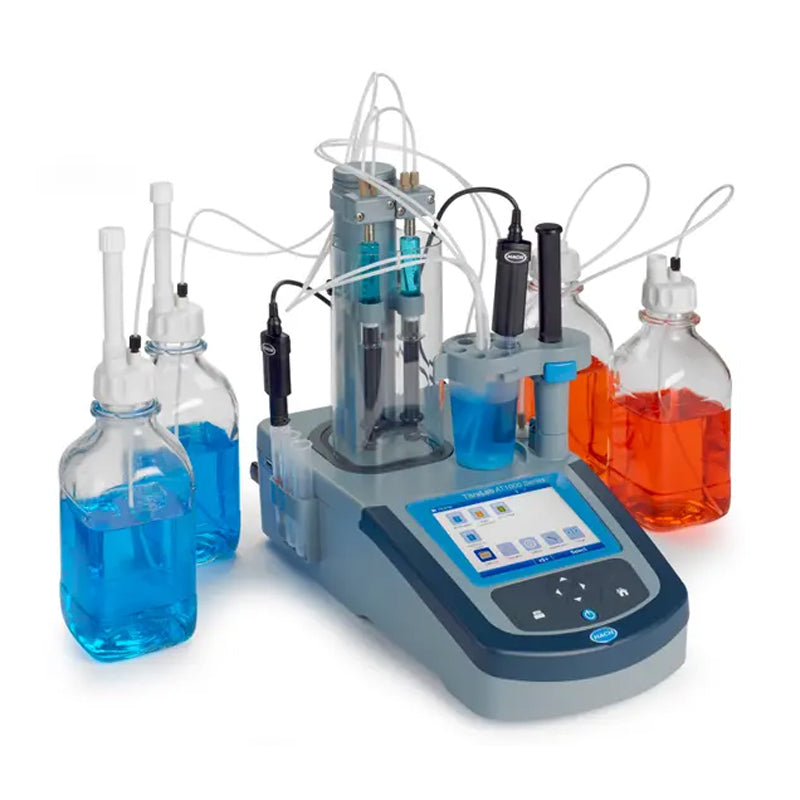

Simplify complex titration with the Titralab AT1000 from Hach. Straight from the box the AT1000 eliminates operator interpretation and manual processes you have come to expect with existing manual titration. The automatic system gives you more reliable results without complicated analysis. To make setup and titration simple, the AT1000 utilizes application specific kits to make it quick and easy for anyone to set up and operate a test.
The AT1222 instrument is designed to work with any of the Hach Application Packs, but the following three can only be run on this instrument:
- pH, Alkalinity & Hardness in water (AP0005.AT1222)
- pH, Total Acidity & Chlorides in Food & Beverage (AP0011.AT1222)
- pH, Total Acidity, Free & Total SO₂ in Wine (AP0013.AT1222)
- As noted the AT1222 can run any application listed for the AT1102, AT1112 and AT1122
Benefits
Accurate and Reliable Titration Results
• Eliminates errors in manual processes and operator interpretation
• Pre-programmed titration methods automatically detect endpoints and perform calculations

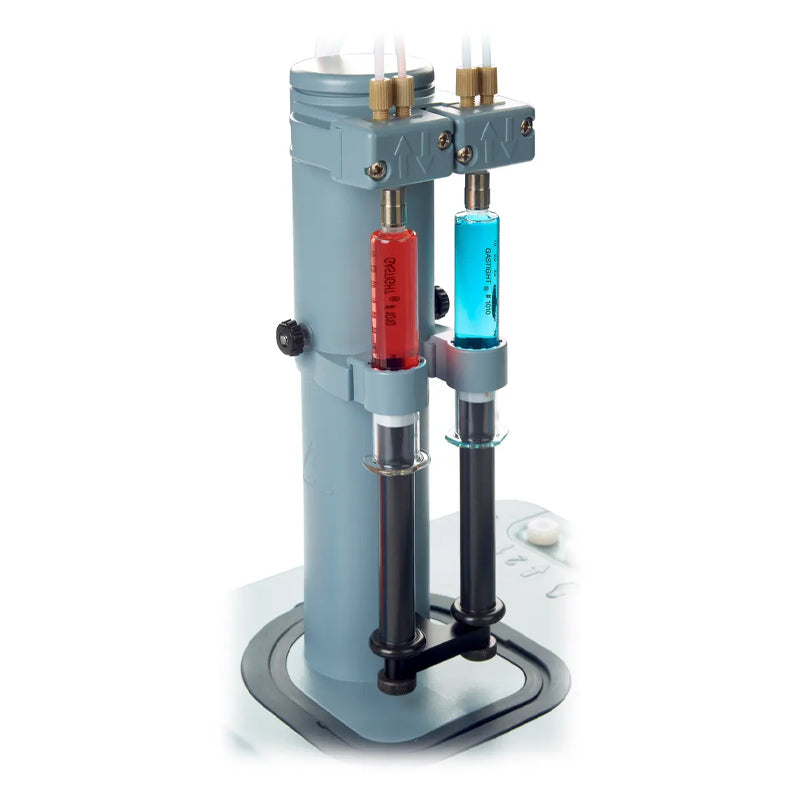

• High resolution electronic burettes with 20,000 steps

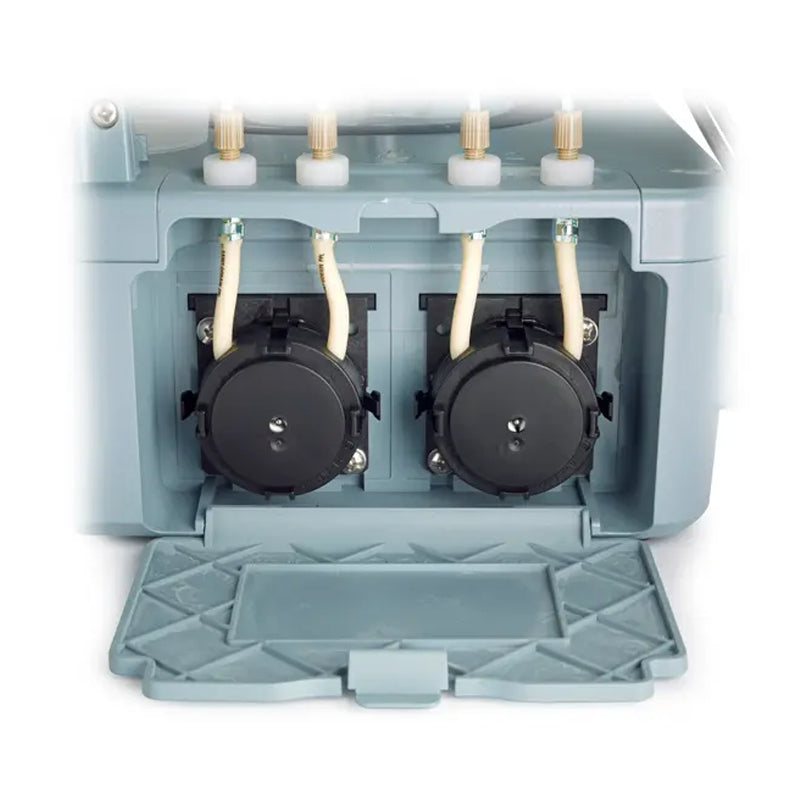

• Automatic sample preparation using embedded peristaltic pumps

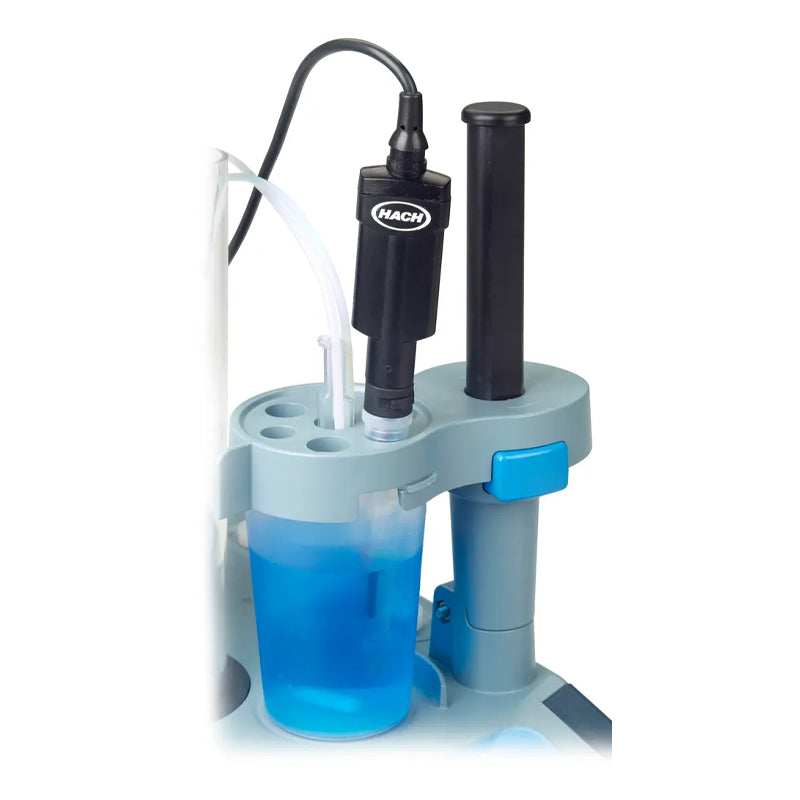

• High performance probes for reliable measurements
Easy to Use for all Operators
• Press one button to get the correct result
• Operators of all skill levels can get accurate measurements
• No need for custom programming with Hach’s unique application specific routines
• Simple user interface with large color display that shows the titration curve as it is measuring
• USB ports to quickly and easily capture data to a PC and attach optional keyboard/mouse or printer
Low Cost of Ownership
• Reduces the amount of reagent used for every titration cutting cost of ownership month after month
• Increases lab throughput by allowing operator to prepare next sample while titrator performs measurement
• Adding an AS1000 sample changer allows the operator to load multiple samples and come back for results later
Improves Lab Safety
• Minimizes direct contact with reagents
• No need for potentially dangerous colored indicators
• Instrument can be easy and safely moved thanks to the compact design
Low Maintenance
• Reliable design significantly reduces downtime
• Extended periods between maintenance routines
• Maintenance is simple and easy to perform
Specifications
Burette
Volumes Available | 2.5/5/10/25 mL, ISO8655-3 |
Technical Attributes
Application | Maximum number of applications: 10b |
Automatic Reagent Addition(s) | Integrated peristaltic pumps for reagent addition |
Beaker Volumes Accepted | System specific beakers: Polypropylene, 50 mL & 150 mL with clips Generic beakers supported: Up to 250 mL low form glass |
Burette | 2 |
Burette Motor Resolution | 20,000 steps with electronic µstepping technology (128 µsteps/step) |
Calibration | Titrant & electrode (up to 5 buffers in Auto Mode, fixed & user defined) |
Calibration Curves Display | Direct & derivative titration curves, electrode calibration curve |
Calibration Intervals/Alerts/Reminder | Yes, user defined period |
Certifications | Safety IEC/EN 61010-1; EMC IEC/EN 61326-1 |
Data Export | On USB Key, CSV type, Excel compatible. |
Data Memory | Last 100 samples, QC & blank analyses, last 10 calibrations |
Data Storage | Date, Time, Operator IDs, Sample IDs |
Display Type | 5,7"; Graphic colour; VGA |
Electrode | IntelliCAL (Plug & Play" digital), analog, photocolorimetric; 2 inputs available" |
Embedded Procedures | Tubing bubble purging, reagent priming, burette and pump replacement |
Installation Category | Category II |
Languages | English, German, French, Italian, Spanish |
Maintenance Scheduler | Yes, user defined |
Material Enclosures | PP Latene, Silicone, Hardered Glass, POM, Stainless steel. Splashproof design |
Measurement Method | Potentiometric (zero & imposed current), amperometric, colorimetric |
Measurement Modes | End Point, Inflection Point - Sample, Blank, Sample with Blank, QC Sample, QC Sample with Blank |
Model | AT1222 |
Operating Conditions | 15 - 35 °C (59 - 95 °F), 20 - 80 % RH, non-condensing |
Operating Humidity | 20 - 80 % (non-condensing) |
Operating Interface | Soft keypad (silicone) |
Operating Temperature Range | 15 - 35 °C (59 - 95 °F) |
Outputs | Electrode ports (x2), USB (x2), Serial (x1), Ethernet (x1) |
Parameter | mV/pH, Conductivity, Temperature (°C or °F) |
Password Protection | Yes, user defined |
Pollution Degree | 2 |
Power Requirements (Hz) | 50/60 Hz |
Power Requirements (Voltage) | 100/240 VAC |
Pump flow rate | 100 mL/min |
Pumps | 2 |
Required Application Package/s | AP0005.AT1222 pH, Alkalinity & Hardness in Water AP0011.AT1222 pH, Total Acidity & Chlorides in Food & Beverage AP0013.AT1222 pH, Total Acidity, Free & Total SO₂ in Wine |
Resolution | mV/pH: ±0.1 mV / ±0.001 pH|Conductivity: ±0.5 % of reading|Temperature: ±0.3 °C |
Sample Stand | Integrated, magnetic stirring, beakers up to 250 mL |
Storage Conditions | -5 to 40 °C (23 to 104°F) |
Supported Peripherals | Printer, PC software, balance, sample changer, keyboard, mouse, barcode reader, sampling pump, propeller stirrer |
Titration Modes | Sample, blank, sample with blank, QC sample, QC sample with blank |
Titration Types | Potentiometric (zero & imposed current), amperometric, colorimetric |
Warranty | 12 months |
Weight | 4 kg |
What's included? | Hach AT1222 Instrument, Tube Holder, Sensor Storage Tubes, Power Supply, Power Cord, Manual Sold Separately: Don't forget to order your Application Pack and Reagents and consider purchasing a Sample Changer! |
